XM2E-2540-132L

Obsolete

Omron Electronics Inc-EMC Div

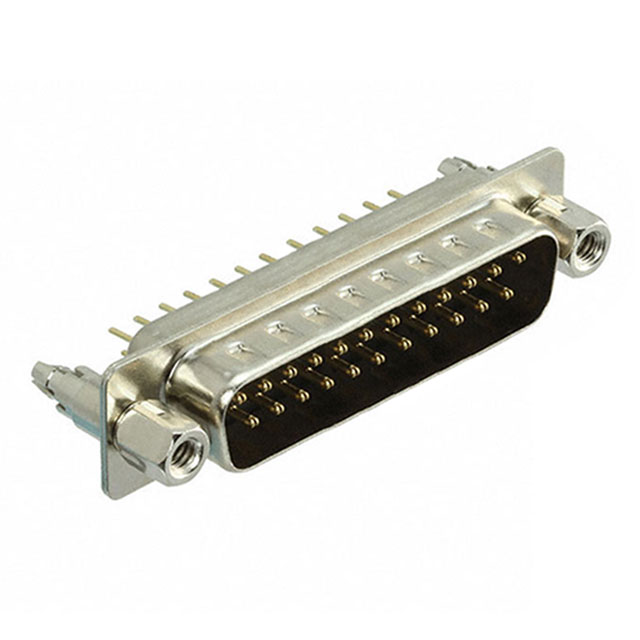

CONN D-SUB PLUG 25POS VERT SLDR

Search across all available documentation for this part.

Obsolete

Omron Electronics Inc-EMC Div

CONN D-SUB PLUG 25POS VERT SLDR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XM2E-2540-132L	XM2E Series

Color	Black	Black
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Finish Thickness	-	16 µin
Contact Finish Thickness	-	0.41 µm
Contact Material	Brass	Brass
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled	Polybutylene Terephthalate (PBT), Glass Filled
Features	Board Lock, Shielded, Grounding Indents	Board Lock, Shielded, Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side	Female Screwlock (4-40), Mating Side, Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	-	9
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-25 °C	-25 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B	DE, E, DB, B
Shell Size, Connector Layout [custom]	3	1 - 3
Termination	Solder	Solder
Voltage Rating	300 VDC	300 VDC

CONN D-SUB PLUG 9POS VERT SLDR

Part	Contact Material	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Connector Style	Contact Type	Connector Type	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Current Rating (Amps)	Mounting Type	Number of Rows	Number of Positions	Features	Shell Material, Finish	Contact Finish Thickness	Color	Contact Finish	Voltage Rating	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness
Omron Electronics Inc-EMC Div XM2E-0940-132L	Brass	Polybutylene Terephthalate (PBT), Glass Filled	DE, E	1	D-Sub	Signal	Male Pins, Plug	Female Screwlock (4-40), Mating Side	-25 °C	105 ░C	Solder	3 A	Through Hole	2	9	Board Lock, Grounding Indents, Shielded	Nickel Plated, Steel	Flash	Black	Gold	300 VDC	UL94 V-0
Omron Electronics Inc-EMC Div XM2E-2540-132L	Brass	Polybutylene Terephthalate (PBT), Glass Filled	B, DB	3	D-Sub	Signal	Male Pins, Plug	Female Screwlock (4-40), Mating Side	-25 °C	105 ░C	Solder	3 A	Through Hole	2		Board Lock, Grounding Indents, Shielded	Nickel Plated, Steel	Flash	Black	Gold	300 VDC	UL94 V-0
Omron Electronics Inc-EMC Div XM2E0940502L	Brass	Polybutylene Terephthalate (PBT), Glass Filled	DE, E	1	D-Sub	Signal	Male Pins, Plug	Housing/Shell (Unthreaded)	-25 °C	105 ░C	Solder	3 A	Through Hole	2	9	Shielded	Nickel Plated, Steel		Black	Gold	300 VDC	UL94 V-0	16 µin	0.41 µm
