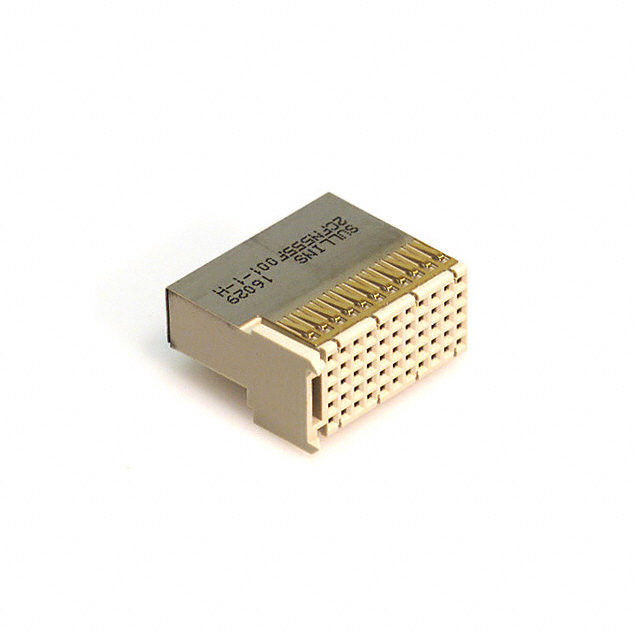

2CF555F001-1-H

Obsolete

Sullins Connector Solutions

CONN RECEPT 55POS 2MM PRESS-FIT

Search across all available documentation for this part.

Obsolete

Sullins Connector Solutions

CONN RECEPT 55POS 2MM PRESS-FIT

Technical Specifications

Parameters and characteristics for this part

CONN RECEPT 55POS 2MM PRESS-FIT

Part	Number of Rows	Connector Style	Current Rating (Amps)	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Connector Usage	Contact Finish	Number of Positions	Termination	Number of Positions Loaded	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features
Sullins Connector Solutions 2CF555F001-1-H	5	C 11	1 A	0.079 in	2 mm	0.76 Ám	30 Áin	CompactPCI	Gold	55 positions	Press-Fit	All	Receptacle, Female Sockets	125 °C	-65 ░C	Through Hole, Right Angle	Board Guide, Upper Shield

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

55 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
