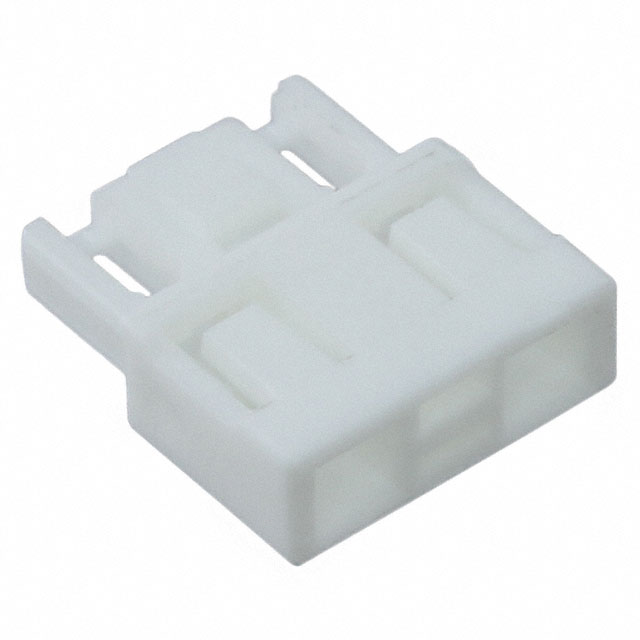

LEBRP-02V-S
ActiveJST Sales America Inc.
CONN SSL PLUG HSG 2POS CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
LEBRP-02V-S
ActiveJST Sales America Inc.
CONN SSL PLUG HSG 2POS CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | LEBRP-02V-S |
|---|---|
| Connector Type | Plug Housing for Tab Contact |
| Current Rating (Amps) | 3 A |
| Housing Color | Natural |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Style | Board to Cable/Wire |
| Termination | Crimp |
| Voltage Rating | 300 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.31 | |
| 10 | $ 0.24 | |||
| 25 | $ 0.22 | |||
| 50 | $ 0.20 | |||
| 100 | $ 0.18 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 2000 | $ 0.13 | |||
| 4000 | $ 0.12 | |||
Description
General part information
LEBRP-02 Series
SSL Connector 2 Position Plug Housing for Tab Contact Board to Cable/Wire Crimp
