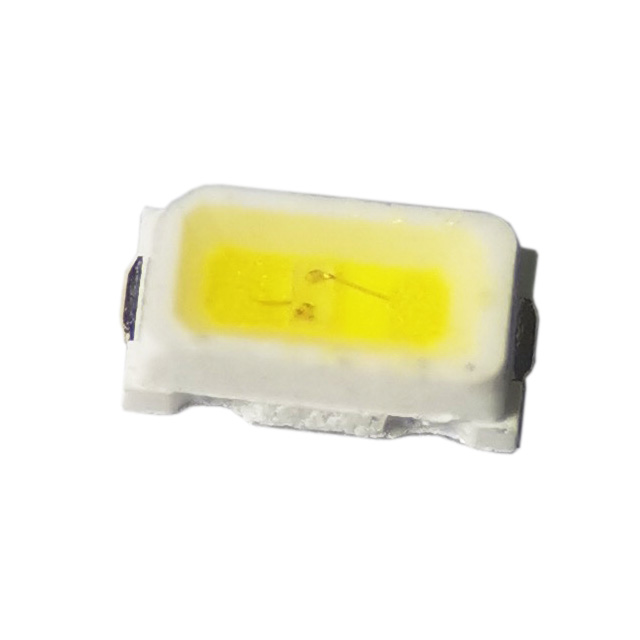

QBLP661-IW5-CW

Active

QT Brightek (QTB)

LED COOL WHITE DIFFUSED 0603 SMD

Search across all available documentation for this part.

Active

QT Brightek (QTB)

LED COOL WHITE DIFFUSED 0603 SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

White, Cool 11000K LED Indication - Discrete 2.8V 0603 (1608 Metric)

Technical documentation and resources

Specification	QBLP661-IW5-CW	QBLP661 Series

Color	Cool, White	Yellow, Blue, Red, Cool, White, Green
Configuration	Standard	Standard
Current - Test	5 mA	5 - 20 mA
Lens Color	Yellow	Colorless, Yellow
Lens Size [x]	1.25 mm	1.25 mm
Lens Size [y]	0.6 mm	0.6 mm
Lens Style	Rectangle with Flat Top	Rectangle with Flat Top
Lens Transparency	Diffused	Clear, Diffused
Millicandela Rating	350 mcd	60 - 500 mcd
Mounting Type	Surface Mount	Surface Mount
Package / Case	0603 (1608 Metric)	0603 (1608 Metric)
Size / Dimension [x]	1.55 mm	1.55 mm
Size / Dimension [y]	0.8 mm	0.8 mm
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	2.8 V	1.8 - 3.2 V
Wavelength - Dominant	11000 K	465 - 11000 nm

Part	Wavelength - Dominant	Package / Case	Viewing Angle	Lens Style	Lens Size [y]	Lens Size [x]	Configuration	Current - Test	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Color	Mounting Type	Millicandela Rating	Lens Color
QT Brightek (QTB) QBLP661-Y	590 nm	0603 (1608 Metric)	120 °	Rectangle with Flat Top	0.6 mm	1.25 mm	Standard	20 mA	2 V	1.55 mm	0.8 mm	Clear	Yellow	Surface Mount	250 mcd	Colorless
QT Brightek (QTB) QBLP661-IB5	465 nm	0603 (1608 Metric)	120 °	Rectangle with Flat Top	0.6 mm	1.25 mm	Standard	5 mA	3.2 V	1.55 mm	0.8 mm	Clear	Blue	Surface Mount	70 mcd	Colorless
QT Brightek (QTB) QBLP661-O	605 nm	0603 (1608 Metric)	120 °	Rectangle with Flat Top	0.6 mm	1.25 mm	Standard	20 mA	2 V	1.55 mm	0.8 mm	Clear		Surface Mount	200 mcd	Colorless
QT Brightek (QTB) QBLP661-R5	620 nm	0603 (1608 Metric)	120 °	Rectangle with Flat Top	0.6 mm	1.25 mm	Standard	5 mA	1.8 V	1.55 mm	0.8 mm	Clear	Red	Surface Mount	60 mcd	Colorless
QT Brightek (QTB) QBLP661-IW5-CW	11000 K	0603 (1608 Metric)	120 °	Rectangle with Flat Top	0.6 mm	1.25 mm	Standard	5 mA	2.8 V	1.55 mm	0.8 mm	Diffused	Cool, White	Surface Mount	350 mcd	Yellow
QT Brightek (QTB) QBLP661-IG5	520 nm	0603 (1608 Metric)	120 °	Rectangle with Flat Top	0.6 mm	1.25 mm	Standard	5 mA	3.2 V	1.55 mm	0.8 mm	Clear	Green	Surface Mount	500 mcd	Colorless
