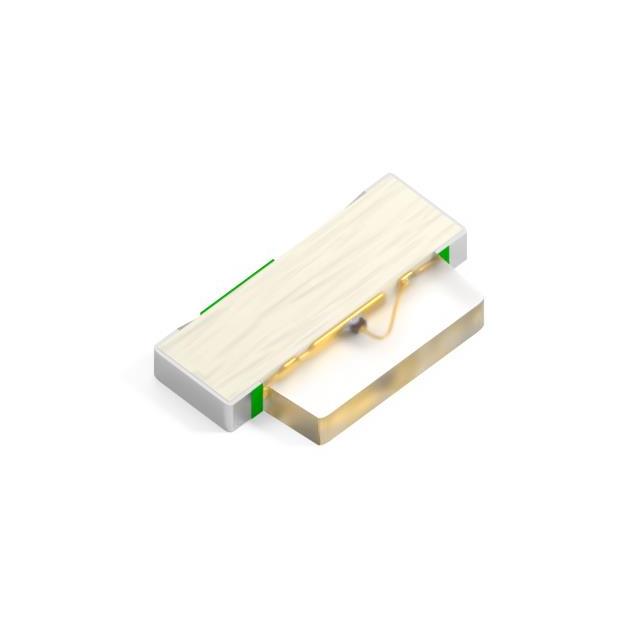

XZMYF151W
ActiveSunLED
LED YELLOW CLEAR 2SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZMYF151W
ActiveSunLED
LED YELLOW CLEAR 2SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZMYF151W |
|---|---|
| Color | Yellow |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.3 mm |
| Lens Color | Colorless |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 0.2 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 74 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.9 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 150 ° |
| Voltage - Forward (Vf) (Typ) | 2.05 V |
| Wavelength - Dominant | 589 nm |
| Wavelength - Peak | 591 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.40 | |
| 10 | $ 0.25 | |||
| 100 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| 2000 | $ 0.10 | |||
| Digi-Reel® | 1 | $ 0.40 | ||
| 10 | $ 0.25 | |||
| 100 | $ 0.14 | |||
| 1000 | $ 0.11 | |||
| 2000 | $ 0.10 | |||
| Tape & Reel (TR) | 4000 | $ 0.10 | ||
| 8000 | $ 0.09 | |||
| 12000 | $ 0.09 | |||
| 28000 | $ 0.08 | |||
| 100000 | $ 0.08 | |||
Description
General part information
XZMYF151 Series
Yellow 589nm LED Indication - Discrete 2.05V 2-SMD, No Lead
