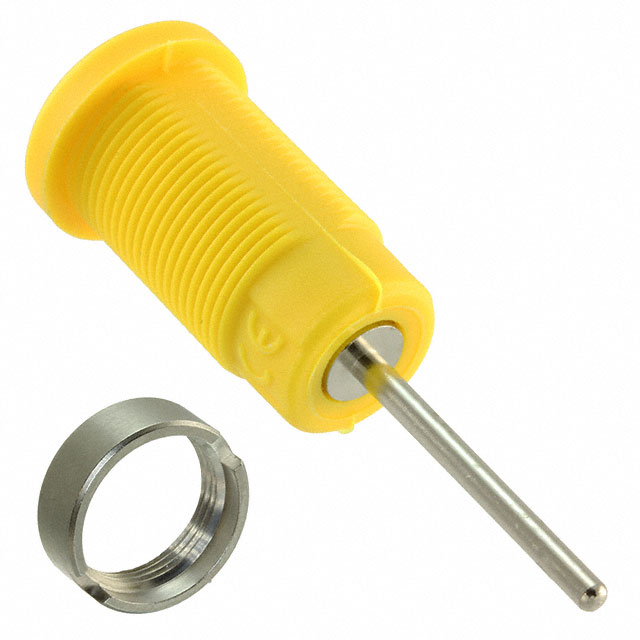

CT2906-4

Active

Cal Test Electronics

CONN BANANA JACK M 1 POS SOLDER ST CABLE MOUNT 1 PORT BAG

Search across all available documentation for this part.

Active

Cal Test Electronics

CONN BANANA JACK M 1 POS SOLDER ST CABLE MOUNT 1 PORT BAG

Technical Specifications

Parameters and characteristics for this part

Part	Type	Contact Material	Plug/Mating Plug Diameter	Color	Termination	Insulation	Gender	Body Material	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]
Cal Test Electronics CT2906-9	Banana Jack	Brass	Standard Banana	White	Solder	Mating End Insulated	Female	Nylon Polyamide (PA)	Nickel	-20 C	80 C
Cal Test Electronics CT2906-8	Banana Jack	Brass	Standard Banana	Gray	Solder	Mating End Insulated	Female	Nylon Polyamide (PA)	Nickel	-20 C	80 C
Cal Test Electronics CT2906-2	Banana Jack	Brass	Standard Banana	Red	Solder	Mating End Insulated	Female	Nylon Polyamide (PA)	Nickel	-20 C	80 C
Cal Test Electronics CT2906-4	Banana Jack	Brass	Standard Banana	Yellow	Solder	Mating End Insulated	Female	Nylon Polyamide (PA)	Nickel	-20 C	80 C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 0.20
Digikey	Bulk	1	$ 2.20

General part information

Banana Jack Connector Standard Banana Solder Yellow
