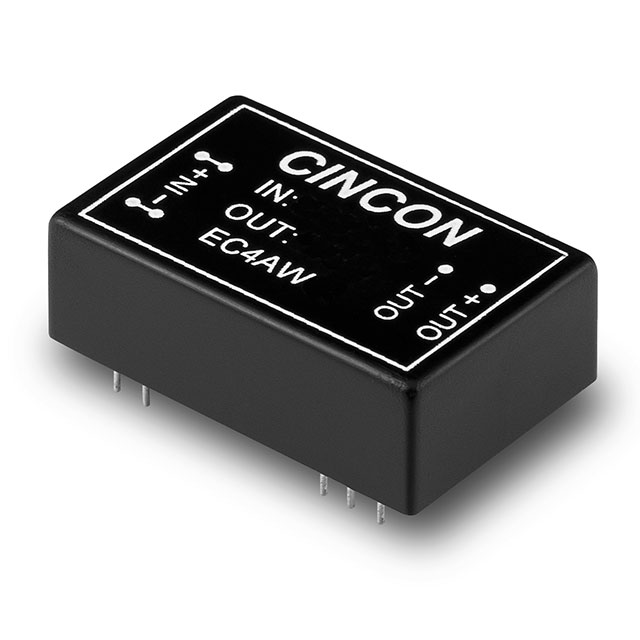

EC4AW16

Active

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, 5 TO 6 WATT, 4:1 INPUT RANGE, 18-72VDC INPUT, +/-5VDC OUTPUT, DIP 1.25X0.80X0.40", NON-CONDUCTIVE BLACK PLASTIC

Find alt

Alpha

EC4AW16

Active

Cincon Electronics Co. LTD

ISOLATED DC/DC CONVERTERS - THROUGH HOLE DC-DC CONVERTER, 5 TO 6 WATT, 4:1 INPUT RANGE, 18-72VDC INPUT, +/-5VDC OUTPUT, DIP 1.25X0.80X0.40", NON-CONDUCTIVE BLACK PLASTIC

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

EC4AW Series

Isolated DC/DC Converters - Through Hole DC-DC Converter, 5 to 6 Watt, 4:1 Input Range, 9-36VDC Input, 15VDC Output, DIP 1.25x0.80x0.40", 3KVDC min. Isolation

Technical Specifications

Parameters and characteristics for this part

Specification	EC4AW16

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max)	500 mA
Efficiency	80 %
Features	SCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	14 Leads
Package Name	24-DIP Module
Power (Watts)	5 W
Size / Dimension Height	0.4 in
Size / Dimension Length	1.25 in
Size / Dimension Width	0.8 in
Type	Isolated Module
Voltage - Input (Max)	72 V
Voltage - Input (Min)	18 V
Voltage - Isolation	500 V
Voltage - Output 1	5 V
Voltage - Output 2	-5 V

EC4AW Series

Isolated DC/DC Converters - Through Hole DC-DC Converter, 5 to 6 Watt, 4:1 Input Range, 9-36VDC Input, 15VDC Output, DIP 1.25x0.80x0.40", 3KVDC min. Isolation

Part	Voltage - Output 1	Approval Agency	Number of Outputs	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Input (Max)	Type	Operating Temperature (Max)	Operating Temperature (Min)	Applications	Voltage - Isolation	Power (Watts)	Package Leads	Package Name	Features	Current - Output (Max)	Mounting Type	Voltage - Input (Min)	Efficiency	Voltage - Output 2	Standard Number
Cincon Electronics Co. LTD EC4AW12HM	12 V	CE	1	0.4 in	1.25 in	0.8 in	72 V	Isolated Module	85 °C	-40 °C	ITE (Commercial)	1500 Vrns	5.6 W	14 Leads	24-DIP Module	SCP	470 mA	Through Hole	18 V	82 %
Cincon Electronics Co. LTD EC4AW-24D15H6	15 V	CE	2	0.4 in	1.25 in	0.8 in	36 V	Isolated Module	100 °C	-40 °C	ITE (Commercial)	6 kV	6 W	8 Leads	24-DIP Module	SCP UVLO	200 mA	Through Hole	9 V	84 %	-15 V	62368-1
Cincon Electronics Co. LTD EC4AW04	12 V	CE	2	0.4 in	1.25 in	0.8 in	36 V	Isolated Module	85 °C	-40 °C	ITE (Commercial)	500 V	5.5 W	14 Leads	24-DIP Module	SCP	230 mA	Through Hole	9 V	82 %	-12 V
Cincon Electronics Co. LTD EC4AW-48S12H6	12 V	CE	1	0.4 in	1.25 in	0.8 in	72 V	Isolated Module	100 °C	-40 °C	ITE (Commercial)	6 kV	6 W	8 Leads	24-DIP Module	SCP UVLO	500 mA	Through Hole	18 V	84 %		62368-1
Cincon Electronics Co. LTD EC4AW07HM	3.3 V	CE	1	0.4 in	1.25 in	0.8 in	36 V	Isolated Module	85 °C	-40 °C	ITE (Commercial)	1500 Vrns	3.3 W	14 Leads	24-DIP Module	SCP	1 A	Through Hole	9 V	78 %
Cincon Electronics Co. LTD EC4AW-48D12H6	12 V	CE	2	0.4 in	1.25 in	0.8 in	72 V	Isolated Module	100 °C	-40 °C	ITE (Commercial)	6 kV	6 W	8 Leads	24-DIP Module	SCP UVLO	250 mA	Through Hole	18 V	83 %	-12 V	62368-1
Cincon Electronics Co. LTD EC4AW14HM	12 V	CE	2	0.4 in	1.25 in	0.8 in	72 V	Isolated Module	85 °C	-40 °C	ITE (Commercial)	1500 Vrns	5.5 W	14 Leads	24-DIP Module	SCP	230 mA	Through Hole	18 V	80 %	-12 V
Cincon Electronics Co. LTD EC4AW-48S05H6	5 V	CE	1	0.4 in	1.25 in	0.8 in	72 V	Isolated Module	100 °C	-40 °C	ITE (Commercial)	6 kV	5 W	8 Leads	24-DIP Module	SCP UVLO	1 A	Through Hole	18 V	80 %		62368-1
Cincon Electronics Co. LTD EC4AW-24S05H6	5 V	CE	1	0.4 in	1.25 in	0.8 in	36 V	Isolated Module	100 °C	-40 °C	ITE (Commercial)	6 kV	5 W	8 Leads	24-DIP Module	SCP UVLO	1 A	Through Hole	9 V	80 %		62368-1
Cincon Electronics Co. LTD EC4AW16	5 V	CE	2	0.4 in	1.25 in	0.8 in	72 V	Isolated Module	85 °C	-40 °C	ITE (Commercial)	500 V	5 W	14 Leads	24-DIP Module	SCP	500 mA	Through Hole	18 V	80 %	-5 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

EC4AW16 | Datasheet

Datasheet-EC4AW.pdf
