MS3126F-20-16S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 16POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MS3126F-20-16S

Active

Amphenol Industrial Operations

CONN PLUG FMALE 16POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MS3126F-20-16S	MS3126F20 Series

	-	-
Applications	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military	Communication Systems, Industrial, Instrumentation, Aerospace, Mass Transit, Military
Backshell Material, Plating	Aluminum, Olive Drab Chromate over Cadmium	Aluminum, Olive Drab Chromate over Cadmium
Cable Opening	-	15.88 mm
Cable Opening	-	0.625 in
Color	Olive Drab	Olive Drab
Connector Type	Female Sockets, Plug	Female Sockets, Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	-	7.5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell, Strain Relief
Grade	Military	Military
Ingress Protection	Environment Resistant	Environment Resistant
Insert Material	Neoprene	Neoprene
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	16	16
Number of Positions	-	39
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	N	N
Primary Material	Metal	Metal
Qualification	MIL-DTL-26482 Series I	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium	Olive Drab Chromate over Cadmium
Shell Material	Aluminum	Aluminum
Shell Size - Insert	-	39
Shell Size - Insert	-	20
Shell Size - Insert [Max] [diameter]	20	20
Shell Size - Insert [Min] [diameter]	16	16
Shielding	Unshielded	Unshielded
Termination	Crimp	Crimp
Voltage Rating	-	600 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 167.39
		10	$ 153.60

MS3126F20 Series

CONN PLUG FMALE 16POS GOLD CRIMP

Part	Insert Material	Number of Positions	Contact Finish - Mating	Grade	Orientation	Features	Termination	Applications	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Primary Material	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]	Qualification	Contact Material	Fastening Type	Mounting Type	Backshell Material, Plating	Shielding	Connector Type	Shell Finish	Color	Voltage Rating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Current Rating (Amps)	Number of Positions	Cable Opening [custom]	Cable Opening [custom]
Amphenol Industrial Operations MS3126F-20-16S	Neoprene	16	Gold	Military	N	Backshell, Cable Clamp, Coupling Nut	Crimp	Aerospace, Communication Systems, Industrial, Instrumentation, Mass Transit, Military	Environment Resistant	-55 °C	125 °C	Aluminum	Metal	20	16	MIL-DTL-26482 Series I	Copper Alloy	Bayonet Lock	Free Hanging (In-Line)	Aluminum, Olive Drab Chromate over Cadmium	Unshielded	Female Sockets, Plug	Olive Drab Chromate over Cadmium	Olive Drab
Amphenol Industrial Operations MS3126F20-39P	Neoprene		Gold	Military	N	Coupling Nut, Strain Relief	Crimp	Aerospace, Industrial, Instrumentation, Mass Transit, Military	Environment Resistant	-55 °C	125 °C	Aluminum	Metal			MIL-DTL-26482 Series I	Copper Alloy	Bayonet Lock	Free Hanging (In-Line)		Unshielded	Male Pins, Plug	Olive Drab Chromate over Cadmium	Olive Drab	600 VAC	39	20	7.5 A, 13 A	39	15.88 mm	0.625 in
Amphenol Industrial Operations MS3126F20-41S(LC)
Amphenol Industrial Operations MS3126F20-39PX
Amphenol Industrial Operations MS3126F20-16SX

Description

General part information

MS3126F20 Series

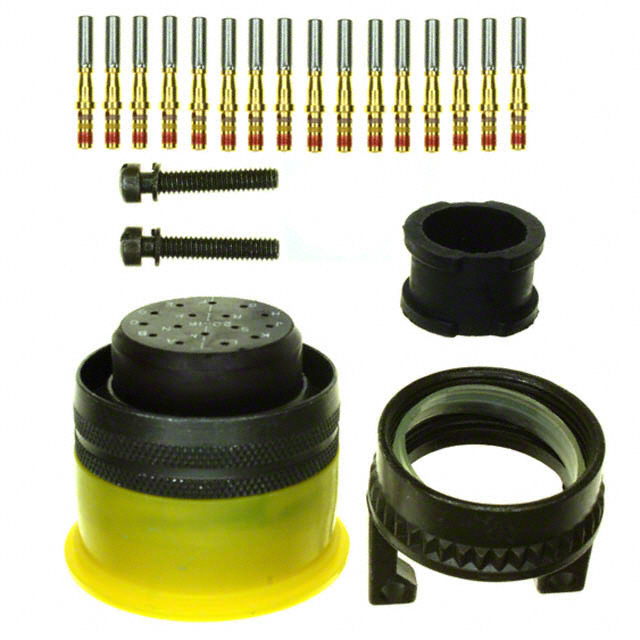

16 Position Circular Connector Plug, Female Sockets Crimp

Documents

Technical documentation and resources
