345-014-544-607
ActiveEDAC Inc.

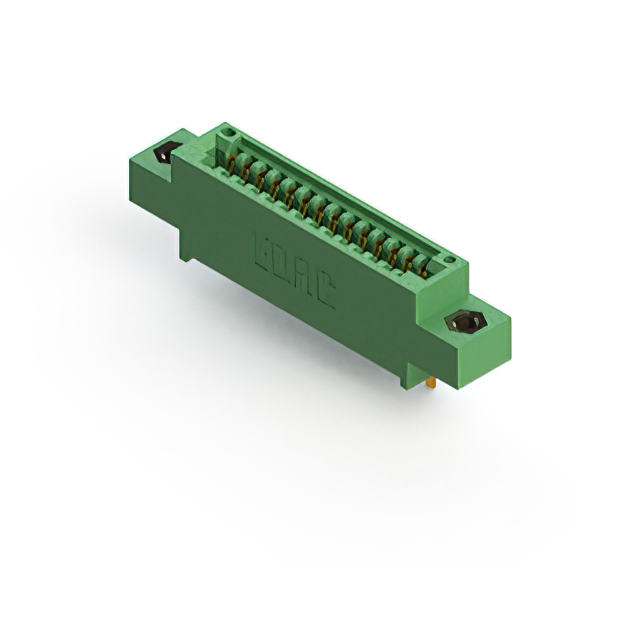

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 14 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
345-014-544-607
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 14 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-014-544-607 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | M3, Threaded Insert, Top Mount Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 14 |
| Number of Positions/Bay/Row [custom] | 14 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
345-014 Series
...
| Part | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Contact Material | Color | Material - Insulation | Pitch [x] | Pitch [x] | Features | Flange Feature | Card Type | Termination Rows | Contact Finish | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row [custom] | Read Out | Termination | Number of Positions | Gender | Operating Temperature [Max] [custom] | Operating Temperature [Min] [custom] | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Copper Alloy | Green | Polyester Thermoplastic | 2.54 mm | 0.1 in | Card Guides | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | 2 | Gold | Cantilever | 10 Áin | 0.25 Ám | 2 | -40 °C | 105 ░C | 7 | Dual | Wire Wrap | 14 | Female | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Green | Polyester Thermoplastic | 2.54 mm | 0.1 in | Non Specified - Dual Edge | 2 | Gold | Cantilever | 10 in | 0.25 m | 2 | 7 | Dual | Wire Wrap | 14 | Female | 105 C | -40 C | 3.25 mm | 0.128 in | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Green | Polyester Thermoplastic | 2.54 mm | 0.1 in | Side Mount Opening Unthreaded | Non Specified - Dual Edge | 2 | Gold | Cantilever | 10 Áin | 0.25 Ám | 2 | -40 °C | 105 ░C | 7 | Dual | Solder | 14 | Female | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | Copper Alloy | Green | Polyester Thermoplastic | 2.54 mm | 0.1 in | Card Extender | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 2 | Gold | Cantilever | 10 Áin | 0.25 Ám | 2 | -40 °C | 105 ░C | 7 | Dual | Solder | 14 | Female | 3.96 mm | 0.156 in | ||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Green | Polyester Thermoplastic | 2.54 mm | 0.1 in | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1 | Gold | Cantilever | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 14 | Single | Wire Wrap | 14 | Female | |||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | Copper Alloy | Green | Polyester Thermoplastic | 2.54 mm | 0.1 in | Card Guides | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1 | Gold | Cantilever | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 14 | Single | Wire Wrap | 14 | Female | ||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Green | Polyester Thermoplastic | 2.54 mm | 0.1 in | 4-40 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1 | Gold | Cantilever | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 14 | Single | Solder | 14 | Female | |||||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Green | Polyester Thermoplastic | 2.54 mm | 0.1 in | Side Mount Opening Unthreaded | Non Specified - Dual Edge | 2 | Gold | Cantilever | 10 Áin | 0.25 Ám | 2 | -40 °C | 105 ░C | 7 | Dual | Solder | 14 | Female | 3.25 mm | 0.128 in | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Green | Polyester Thermoplastic | 2.54 mm | 0.1 in | Flush Mount Top Opening Unthreaded | Non Specified - Dual Edge | 2 | Gold | Cantilever | 10 Áin | 0.25 Ám | 2 | -40 °C | 105 ░C | 7 | Dual | Wire Wrap | 14 | Female | 3.25 mm | 0.128 " | |||||
EDAC Inc. | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | Copper Alloy | Green | Polyester Thermoplastic | 2.54 mm | 0.1 in | M3 Threaded Insert Top Mount Opening | Non Specified - Single Edge | 1 | Gold | Cantilever | 10 Áin | 0.25 Ám | 1 | -40 °C | 105 ░C | 14 | Single | Wire Wrap | 14 | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
345-014 Series

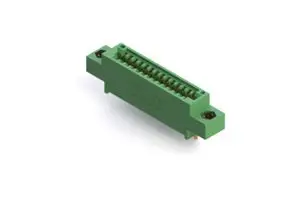

14 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
