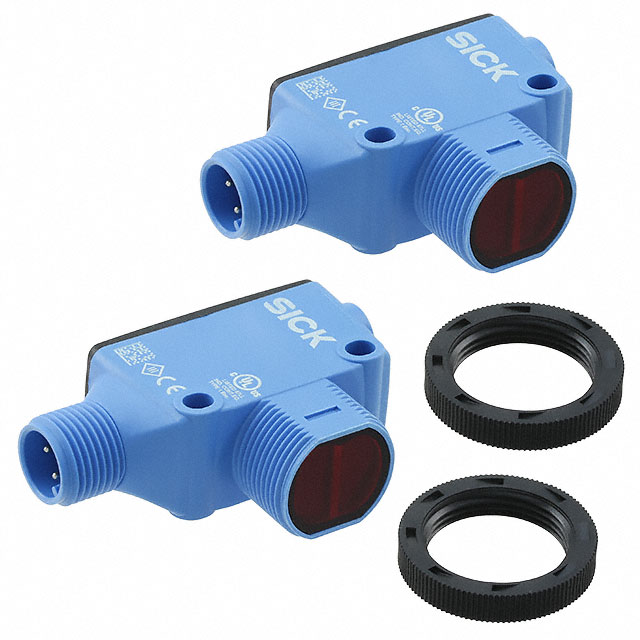

Specification	1074778

Connection Method	4POS, M12, Connector
Ingress Protection	IP69K, IP67
Light Source	Red Laser Diode
Light Source Wavelength (Red Laser Diode)	655 nm
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	-30 °C
Output Configuration	Light-ON - Selectable, NPN - Dark-ON
Response Time	500 µs
Sensing Distance Maximum	1968.504 "
Sensing Distance Minimum	0 cm
Sensing Method	Through-Beam
Voltage - Supply (Maximum)	30 VDC
Voltage - Supply (Minimum)	10 VDC

HSE18L Series

Part	Sensing Method	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Response Time	Operating Temperature (Min)	Operating Temperature (Max)	Sensing Distance	Adjustment Type	Connection Method	Light Source Wavelength (Red Laser Diode)	Light Source	Ingress Protection	Output Configuration	Sensing Distance Minimum	Sensing Distance Maximum	Cable Length
SICK, Inc. HSE18L-F4A5BG	Through-Beam	10 VDC	30 VDC	500 µs	-30 °C	55 °C	2362.205 "	Adjustable Potentiometer	Connector M12	655 nm	Red Laser Diode	IP67
SICK, Inc. 1074776	Through-Beam	10 VDC	30 VDC	500 µs	-30 °C	55 °C			4POS Connector M12	655 nm	Red Laser Diode	IP67 IP69K	Dark-ON Light-ON Light-ON - Selectable PNP PNP - Dark-ON Selectable	0 cm	1968.504 "
SICK, Inc. 1071030	Through-Beam	10 VDC	30 VDC	500 µs	-30 °C	55 °C	2362.205 "		Connector M8	655 nm	Red Laser Diode	IP67	PNP
SICK, Inc. 1074778	Through-Beam	10 VDC	30 VDC	500 µs	-30 °C	55 °C			4POS Connector M12	655 nm	Red Laser Diode	IP67 IP69K	Light-ON - Selectable NPN - Dark-ON	0 cm	1968.504 "
SICK, Inc. 1084296	Through-Beam	10 VDC	30 VDC	500 µs	-30 °C	55 °C	2362.205 "		Cable	655 nm	Red Laser Diode	IP67	NPN PNP			78.74 in
SICK, Inc. HSE18L-B4A5AA	Through-Beam	10 VDC	30 VDC	500 µs	-30 °C	55 °C	2362.205 "		Connector M12	655 nm	Red Laser Diode	IP67	NPN PNP
SICK, Inc. 1083140	Through-Beam	10 VDC	30 VDC	500 µs	-30 °C	55 °C	2362.205 "		Connector M12	655 nm	Red Laser Diode	IP67	NPN
SICK, Inc. 1079186	Through-Beam	10 VDC	30 VDC	500 µs	-30 °C	55 °C	2362.205 "	Adjustable Potentiometer	Cable with Connector	655 nm	Red Laser Diode	IP67	PNP			5.906 in
SICK, Inc. 1080173	Through-Beam	10 VDC	30 VDC	500 µs	-30 °C	55 °C	2362.205 "		Connector M12	655 nm	Red Laser Diode	IP67	NPN PNP
SICK, Inc. 1078565	Through-Beam	10 VDC	30 VDC	500 µs	-30 °C	55 °C	2362.205 "	Adjustable Potentiometer	Connector M12	655 nm	Red Laser Diode	IP67	PNP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

1074778 | Datasheet
