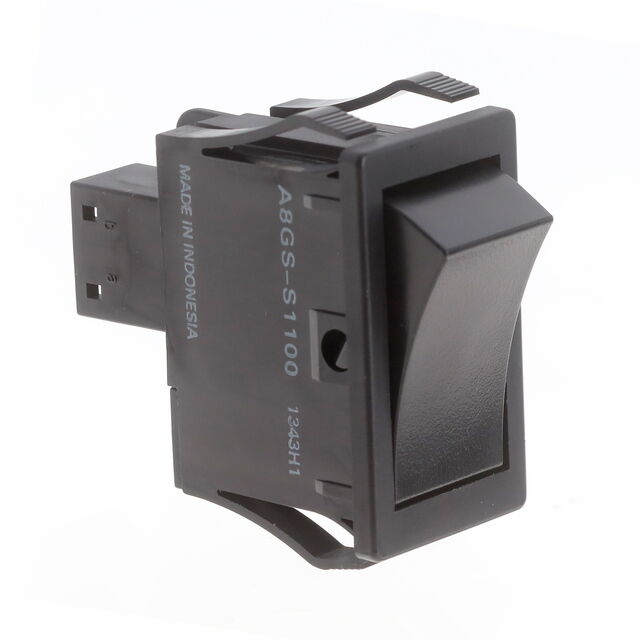

A8GS-S1100

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER SPST 200MA 5V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH ROCKER SPST 200MA 5V

Technical Specifications

Parameters and characteristics for this part

Specification	A8GS-S1100

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Approval Agency	cULus, EN, UL
Circuit	SPST
Color - Actuator/Cap	Black
Current Rating (Amps)	200 mA
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
Panel Cutout Dimensions [x]	27.7 mm
Panel Cutout Dimensions [y]	15.2 mm
Switch Function	On-Off
Termination Style	Connector
Voltage Rating - AC	5 V

Part	Actuator Type	Electrical Life	Circuit	Termination Style	Mechanical Life	Approval Agency	Mounting Type	Actuator Marking	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Current Rating (Amps)	Switch Function	Voltage Rating - AC	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Color - Actuator/Cap
Omron Electronics Inc-EMC Div A8GS-S1100	Concave (Curved)	10000 Cycles	SPST	Connector	30000 Steps	cULus EN UL	Panel Mount Snap-In	No Marking	55 °C	-10 °C	200 mA	On-Off	5 V	15.2 mm	27.7 mm	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rocker Switch SPST 200mA (AC) 5 V Panel Mount, Snap-In
