S8B-PHDSS

Active

JST Sales America Inc.

CONN HEADER R/A 8POS 2MM

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN HEADER R/A 8POS 2MM

Technical Specifications

Parameters and characteristics for this part

Specification	S8B-PHDSS

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Mating	0.114 in
Contact Length - Mating	2.9 mm
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Detent Lock
Insulation Color	Natural
Insulation Height	0.197 in
Insulation Height	5 mm
Insulation Material	Nylon, Polyamide (PA), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

Part	Contact Shape	Current Rating (Amps)	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Style	Insulation Material	Voltage Rating	Insulation Color	Mounting Type	Contact Type	Contact Length - Post	Contact Length - Post	Connector Type	Termination	Fastening Type	Contact Finish - Post	Material Flammability Rating	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Material	Number of Positions
JST Sales America Inc. S8B-PHDSS	Square	3 A	0.197 in	5 mm	0.079 in	2 mm	Board to Cable/Wire	Glass Filled Nylon Polyamide (PA)	250 VDC	Natural	Through Hole Right Angle	Male Pin	0.118 in	3 mm	Header	Solder	Detent Lock	Tin	UL94 V-0	2	0.079 in	2 mm	All	-25 °C	85 °C	0.114 in	2.9 mm	Shrouded - 4 Wall	Copper Alloy	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

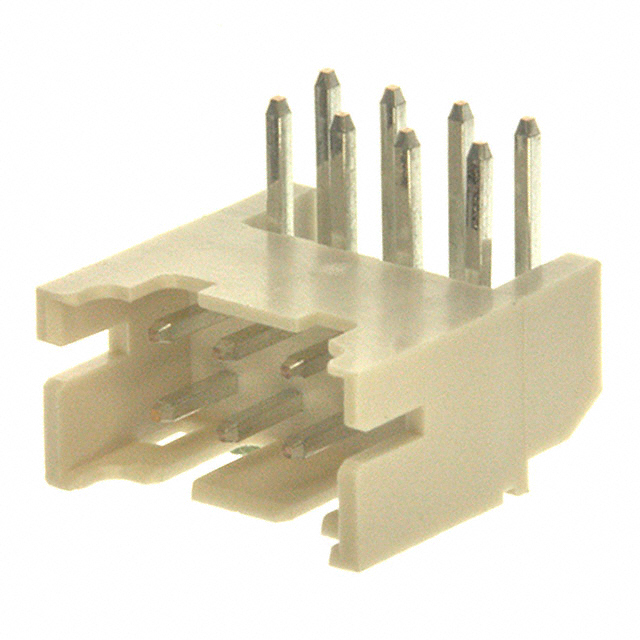

Connector Header Through Hole, Right Angle 8 position 0.079" (2.00mm)
