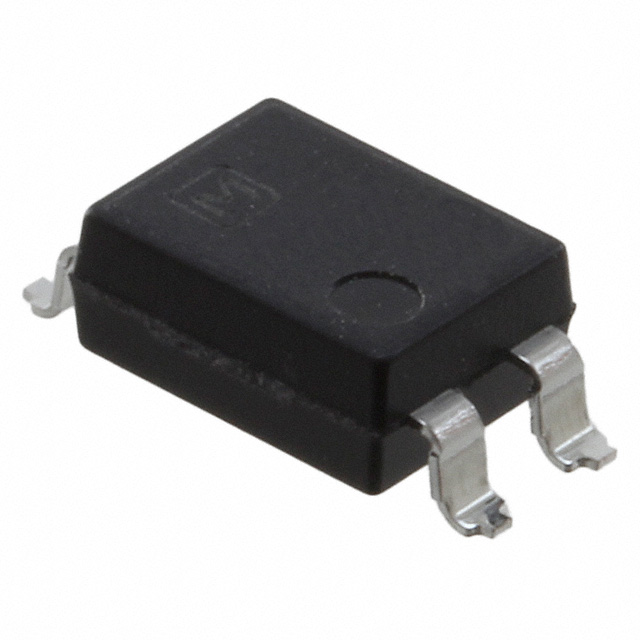

APT1221AZ

Active

Panasonic Electric Works

OPTOISOLATOR 5KV TRIAC 4DIP

Search across all available documentation for this part.

Active

Panasonic Electric Works

OPTOISOLATOR 5KV TRIAC 4DIP

Technical Specifications

Parameters and characteristics for this part

Specification	APT1221AZ

Approval Agency	cUR, VDE
Current - DC Forward (If) (Max)	50 mA
Current - Hold (Ih)	3.5 mA
Current - LED Trigger (Ift) (Max) [Max]	10 mA
Current - On State (It (RMS)) (Max)	100 mA
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Output Type	Triac
Package / Case	4-SMD, Gull Wing
Static dV/dt (Min) [Min]	500 V/µs
Supplier Device Package	4-DIP
Turn On Time	100 µs
Voltage - Forward (Vf) (Typ)	1.21 V
Voltage - Off State	600 V
Zero Crossing Circuit	False

Part	Package / Case	Current - Hold (Ih)	Voltage - Off State	Operating Temperature [Max]	Operating Temperature [Min]	Current - On State (It (RMS)) (Max)	Mounting Type	Current - LED Trigger (Ift) (Max) [Max]	Static dV/dt (Min) [Min]	Output Type	Turn On Time	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Current - DC Forward (If) (Max)	Approval Agency	Number of Channels	Voltage - Isolation
Panasonic Electric Works APT1221AZ	4-SMD Gull Wing	3.5 mA	600 V	100 °C	-40 °C	100 mA	Surface Mount	10 mA	500 V/µs	Triac	100 µs	1.21 V	4-DIP	50 mA	cUR VDE	1
Panasonic Electric Works APT1221S	4-SMD Gull Wing	3.5 mA	600 V	100 °C	-40 °C	50 mA	Surface Mount	10 mA	500 V/µs	Triac	100 µs	1.21 V	4-SOP	50 mA	cUR VDE	1	3750 Vrms
Panasonic Electric Works APT1221WA	4-SMD Gull Wing	3.5 mA	600 V	100 °C	-40 °C	100 mA	Surface Mount	10 mA	500 V/µs	Triac	100 µs	1.21 V	4-DIP Gull Wing	50 mA	cUR VDE	1
Panasonic Electric Works APT1221WAW	4-SMD Gull Wing	3.5 mA	600 V	100 °C	-40 °C	100 mA	Surface Mount	10 mA	500 V/µs	Triac	100 µs	1.21 V	4-DIP Gull Wing	50 mA	cUR VDE	1
Panasonic Electric Works APT1221A	4-SMD Gull Wing	3.5 mA	600 V	100 °C	-40 °C	100 mA	Surface Mount	10 mA	500 V/µs	Triac	100 µs	1.21 V	4-DIP Gull Wing	50 mA	cUR VDE	1
Panasonic Electric Works APT1221SX	4-SMD Gull Wing	3.5 mA	600 V	100 °C	-40 °C	50 mA	Surface Mount	10 mA	500 V/µs	Triac	100 µs	1.21 V	4-SOP	50 mA	cUR VDE	1	3750 Vrms
Panasonic Electric Works APT1221W	4-DIP	3.5 mA	600 V	100 °C	-40 °C	100 mA	Through Hole	10 mA	500 V/µs	Triac	100 µs	1.21 V	4-DIP	50 mA	cUR VDE	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Triac Output 5000Vrms 1 Channel 4-DIP
