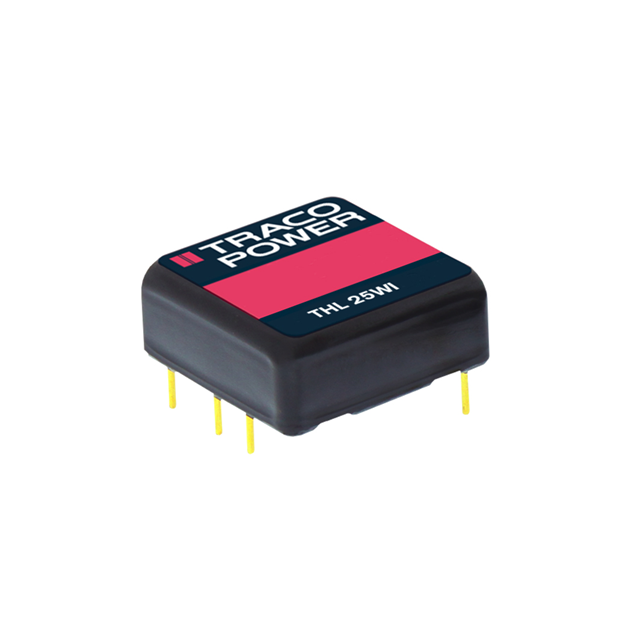

THL 25-2423WI
ActiveTraco Power
DC DC CONVERTER +/-15V 25W
Deep-Dive with AI
Search across all available documentation for this part.
THL 25-2423WI
ActiveTraco Power
DC DC CONVERTER +/-15V 25W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | THL 25-2423WI |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 840 mA |
| Efficiency | 89 % |
| Features | Remote On/Off, OVP, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 80 ¯C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 25 W |
| Size / Dimension [x] | 1 in |
| Size / Dimension [x] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [y] | 25.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
| Voltage - Output 2 | -15 V |
THL 25 Series
| Part | Voltage - Isolation | Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Applications | Voltage - Output 1 | Efficiency | Voltage - Input (Min) [Min] | Features | Current - Output (Max) [Max] | Package / Case | Power (Watts) | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Mounting Type | Voltage - Output 2 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Traco Power | 1.5 kV | Isolated Module | -40 °C | 80 ¯C | 75 V | ITE (Commercial) | 15 V | 90 % | 36 V | OVP Remote On/Off SCP | 1.67 A | 6-DIP Module | 25 W | 1 | 0.4 " | 25.4 mm | 1 in | 25.4 mm | 25.4 mm | 10.2 mm | Through Hole | |
Traco Power | 1.5 kV | Isolated Module | -40 °C | 80 ¯C | 36 V | ITE (Commercial) | 15 V | 89 % | 9 V | OVP Remote On/Off SCP | 840 mA | 6-DIP Module | 25 W | 2 | 0.4 " | 25.4 mm | 1 in | 25.4 mm | 25.4 mm | 10.2 mm | Through Hole | -15 V |
Traco Power | 1.5 kV | Isolated Module | -40 °C | 80 ¯C | 75 V | ITE (Commercial) | 5 V | 90 % | 36 V | OVP Remote On/Off SCP | 5 A | 6-DIP Module | 25 W | 1 | 0.4 " | 25.4 mm | 1 in | 25.4 mm | 25.4 mm | 10.2 mm | Through Hole | |
Traco Power | 1.5 kV | Isolated Module | -40 °C | 80 ¯C | 18 V | ITE (Commercial) | 12 V | 89 % | 9 V | OVP Remote On/Off SCP | 2.09 A | 6-DIP Module | 25 W | 1 | 0.4 " | 25.4 mm | 1 in | 25.4 mm | 25.4 mm | 10.2 mm | Through Hole | |
Traco Power | 1.5 kV | Isolated Module | -40 °C | 80 ¯C | 36 V | ITE (Commercial) | 3.3 V | 88 % | 18 V | OVP Remote On/Off SCP | 6 A | 6-DIP Module | 20 W | 1 | 0.4 " | 25.4 mm | 1 in | 25.4 mm | 25.4 mm | 10.2 mm | Through Hole | |
Traco Power | 1.5 kV | Isolated Module | -40 °C | 80 ¯C | 18 V | ITE (Commercial) | 3.3 V | 87 % | 9 V | OVP Remote On/Off SCP | 6 A | 6-DIP Module | 20 W | 1 | 0.4 " | 25.4 mm | 1 in | 25.4 mm | 25.4 mm | 10.2 mm | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 68.90 | |
| 10 | $ 58.68 | |||
| 25 | $ 56.75 | |||
| 50 | $ 55.32 | |||
| 100 | $ 53.93 | |||
| 250 | $ 47.44 | |||
Description
General part information
THL 25 Series
Isolated Module DC DC Converter 2 Output 15V -15V 840mA, 840mA 9V - 36V Input
