112631

Active

Amphenol RF

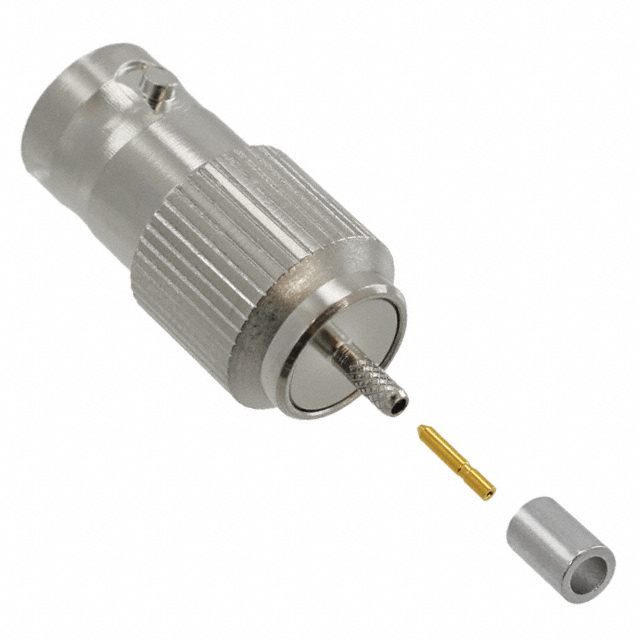

CONNECTOR: BNC; PLUG; FEMALE; STRAIGHT; 50Ω; CRIMPED; FOR CABLE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	112631

Body Finish	Nickel
Body Material	Brass
Cable Group	178B, RG-178, 196A, M17/93-RG178, 196, 178A
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.2 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp
Voltage Rating	500 V

1126 Series

Part	Mating Cycles	Fastening Type	Frequency - Max [Max]	Impedance	Dielectric Material	Cable Group	Shield Termination	Body Material	Includes	Center Contact Plating	Housing Color	Number of Ports	Connector Type	Voltage Rating	Connector Style	Mounting Type	Contact Termination	Insertion Loss	Center Contact Material	Body Finish	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]
Amphenol RF 112605	500	Bayonet Lock	4 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	Belden 9258 LMR-240 RG-8X	Crimp	Brass	1 Connector 1 Contact 1 Ferrule	Gold	Silver	1	Female Socket Jack	500 V	BNC	Free Hanging (In-Line)	Crimp	0.2 dB	Phosphor Bronze	Nickel
Amphenol RF 112661	500	Bayonet Lock	4 GHz	75 Ohms	Polypropylene (PP)		Solder	Zinc Die Cast		Gold	Black Silver	2	Female Socket Jack	500 V	BNC	Panel Mount Right Angle Through Hole	Solder		Beryllium Copper	Nickel	Bulkhead
Amphenol RF 112631	500	Bayonet Lock	4 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	178A 178B 196 196A M17/93-RG178 RG-178	Crimp	Brass	1 Connector 1 Contact 1 Ferrule	Gold	Silver	1	Female Socket Jack	500 V	BNC	Free Hanging (In-Line)	Crimp	0.2 dB	Phosphor Bronze	Nickel
Amphenol RF 112603	500	Bayonet Lock	4 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	9913 9914 Belden 8214 LMR-400	Crimp	Brass	1 Connector 1 Contact 1 Ferrule	Gold	Silver	1	Female Socket Jack	500 V	BNC	Free Hanging (In-Line)	Crimp	0.2 dB	Phosphor Bronze	Nickel
Amphenol RF 112608	500	Bayonet Lock	4 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)		Solder	Brass		Gold	Silver	1	Female Socket Jack		BNC	Board Edge End Launch	Solder		Phosphor Bronze	Nickel		-65 ░C	165 °C
Amphenol RF 112635	500	Bayonet Lock	4 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	188 316 Double Braid M17/152-RD316 RG-179	Crimp	Brass	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Gold	Silver	1	Female Socket Jack	500 V	BNC		Crimp	0.2 dB	Phosphor Bronze	Nickel	Bulkhead - Rear Side Nut
Amphenol RF 112659	500	Bayonet Lock	4 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)		Solder	Brass		Gold	Silver	1	Female Socket Jack	500 V	BNC	Through Hole Right Angle	Solder	0.2 dB	Phosphor Bronze	Nickel		-65 ░C	165 °C
Amphenol RF 112607	500	Bayonet Lock	4 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)		Solder	Brass		Gold	Silver	1	Female Socket Jack	500 V	BNC	Free Hanging (In-Line)	Solder	0.2 dB	Phosphor Bronze	Nickel		-65 ░C	165 °C
Amphenol RF 112653	500	Bayonet Lock	4 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)		Solder	Brass		Gold	Silver	1	Male Pin Plug	500 V	BNC		Solder Cup	0.2 dB	Brass	Nickel	Flange
Amphenol RF 112600	500	Bayonet Lock	4 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	Belden 7807A LMR-200	Crimp	Brass	1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Lockwasher 1 Nut	Gold	Silver	1	Female Socket Jack	500 V	BNC		Crimp	0.2 dB	Phosphor Bronze	Nickel	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 5.19
		10	$ 4.72
		25	$ 4.47
		50	$ 4.36
		100	$ 4.16
		300	$ 3.64
		500	$ 3.53
		1000	$ 3.01
		2500	$ 2.80
	Bulk	1	$ 388.62
TME	N/A	100	$ 4.77

Description

General part information

1126 Series

BNC Connector Jack, Female Socket 50 Ohms Free Hanging (In-Line) Crimp
