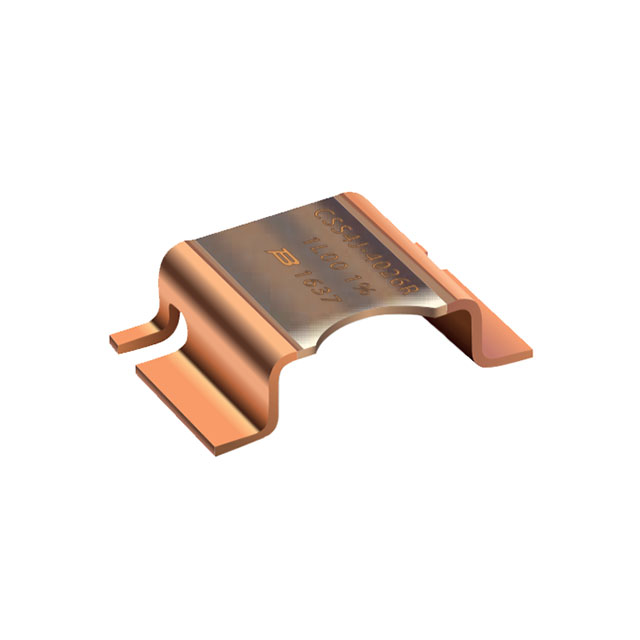

CSS4J-4026R-L500FE
ActiveBourns Inc.
RES SMD 500 UOHM 1% 5W 4026
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CSS4J-4026R-L500FE
ActiveBourns Inc.
RES SMD 500 UOHM 1% 5W 4026
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CSS4J-4026R-L500FE |
|---|---|
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Current Sense |
| Height - Seated (Max) [Max] | 1.5 mm |
| Height - Seated (Max) [Max] [z] | 0.059 " |
| Number of Terminations | 4 |
| Operating Temperature [Max] | 170 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Nonstandard |
| Power (Watts) | 5 W |
| Ratings | AEC-Q200 |
| Resistance | 0.5 mOhms |
| Size / Dimension [x] | 0.397 " |
| Size / Dimension [x] | 10.06 mm |
| Size / Dimension [y] | 0.26 " |
| Size / Dimension [y] | 6.6 mm |
| Supplier Device Package | 4026 |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.14 | |
| 10 | $ 1.42 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.10 | |||
| 100 | $ 1.00 | |||
| Digi-Reel® | 1 | $ 2.14 | ||
| 10 | $ 1.42 | |||
| 25 | $ 1.23 | |||
| 50 | $ 1.10 | |||
| 100 | $ 1.00 | |||
| Tape & Reel (TR) | 400 | $ 0.83 | ||
| 800 | $ 0.77 | |||
| 1200 | $ 0.74 | |||
| 2000 | $ 0.70 | |||
| 2800 | $ 0.68 | |||
| 4000 | $ 0.66 | |||
| 10000 | $ 0.61 | |||
Description
General part information
CSS4J Series
0.5 mOhms ±1% 5W Chip Resistor Nonstandard Automotive AEC-Q200, Current Sense Metal Element
