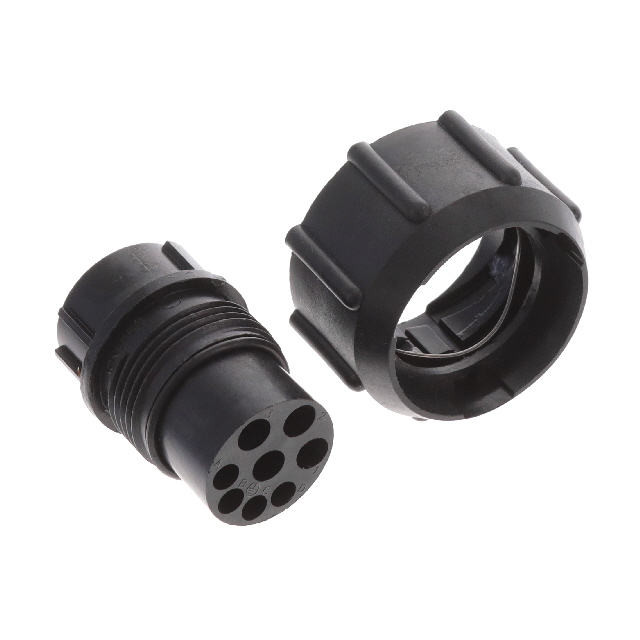

UTP6148P

Active

Souriau-Sunbank by Eaton

CONN PLG HSG MALE 8POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

UTP6148P

Active

Souriau-Sunbank by Eaton

CONN PLG HSG MALE 8POS INLINE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UTP6148P

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	16 (4), 12 (4)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Black
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-25 °C
Orientation	N
Shell Size - Insert	14-8
Shielding	Unshielded
Type	For Male Pins

UTP61 Series

Part	Orientation	Number of Positions	Contact Shape	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Connector Type	Shielding	Type	Contact Type	Mounting Type	Contact Size	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Features	Material Flammability Rating	Note	Shell Size - Insert [Min] [custom]	Shell Size - Insert [Max] [custom]	Shell Size - Insert	Contact Size
Souriau-Sunbank by Eaton UTP61619S	N	19	Circular	16	19	Plug Housing	Unshielded	For Female Sockets	Crimp	Free Hanging (In-Line)	16	Black	125 °C	-25 °C	Bayonet Lock	Coupling Nut	UL94 V-0	Contacts Not Included
Souriau-Sunbank by Eaton UTP61823S	N	23	Circular			Plug Housing	Unshielded	For Female Sockets	Crimp	Free Hanging (In-Line)	16	Black	125 °C	-25 °C	Bayonet Lock	Coupling Nut	UL94 V-0	Contacts Not Included	18	23
Souriau-Sunbank by Eaton UTP61412P	N	12	Circular			Plug Housing	Unshielded	For Male Pins	Crimp	Free Hanging (In-Line)	16	Black	125 °C	-25 °C	Bayonet Lock	Coupling Nut	UL94 V-0	Contacts Not Included			14-12
Souriau-Sunbank by Eaton UTP6104S	N	4	Circular			Plug Housing	Unshielded	For Female Sockets	Crimp	Free Hanging (In-Line)	16	Black	125 °C	-25 °C	Bayonet Lock	Coupling Nut	UL94 V-0	Contacts Not Included			10-4
Souriau-Sunbank by Eaton UTP6148P	N	8	Circular			Plug Housing	Unshielded	For Male Pins	Crimp	Free Hanging (In-Line)		Black	125 °C	-25 °C	Bayonet Lock	Coupling Nut	UL94 V-0	Contacts Not Included			14-8	12 (4) 16 (4)
Souriau-Sunbank by Eaton UTP61823P	N	23	Circular			Plug Housing	Unshielded	For Male Pins	Crimp	Free Hanging (In-Line)	16	Black	125 °C	-25 °C	Bayonet Lock	Coupling Nut	UL94 V-0	Contacts Not Included	18	23
Souriau-Sunbank by Eaton UTP6148S	N	8	Circular			Plug Housing	Unshielded	For Female Sockets	Crimp	Free Hanging (In-Line)		Black	125 °C	-25 °C	Bayonet Lock	Coupling Nut	UL94 V-0	Contacts Not Included			14-8	12 (4) 16 (4)
Souriau-Sunbank by Eaton UTP6128S	N	8	Circular			Plug Housing	Unshielded	For Female Sockets	Crimp	Free Hanging (In-Line)	16	Black	125 °C	-25 °C	Bayonet Lock	Coupling Nut	UL94 V-0	Contacts Not Included			12-8
Souriau-Sunbank by Eaton UTP61619P	N	19	Circular	16	19	Plug Housing	Unshielded	For Male Pins	Crimp	Free Hanging (In-Line)	16	Black	125 °C	-25 °C	Bayonet Lock	Coupling Nut	UL94 V-0	Contacts Not Included
Souriau-Sunbank by Eaton UTP61412S	N	12	Circular			Plug Housing	Unshielded	For Female Sockets	Crimp	Free Hanging (In-Line)	16	Black	125 °C	-25 °C	Bayonet Lock	Coupling Nut	UL94 V-0	Contacts Not Included			14-12

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 18.29
		10	$ 15.54
		25	$ 14.57
		50	$ 13.87
		100	$ 13.21
		250	$ 12.38
		500	$ 11.79

Description

General part information

UTP61 Series

8 (7 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut

Documents

Technical documentation and resources

No documents available
