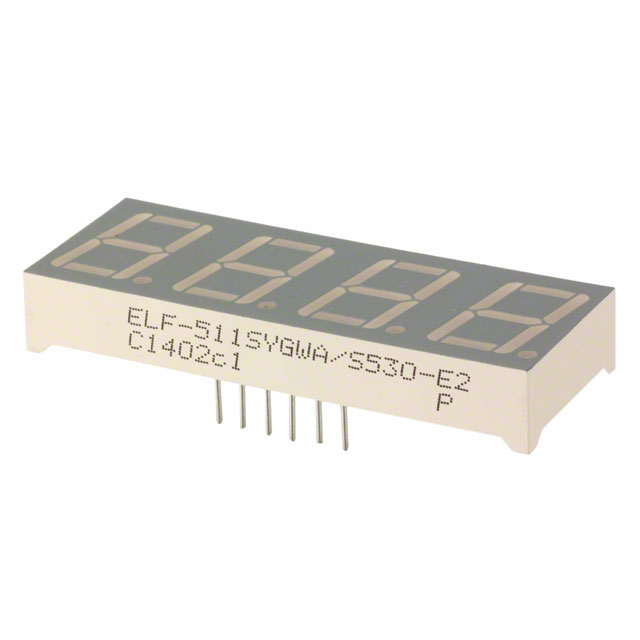

ELF-511SYGWA/S530-E2

Active

Everlight Electronics Co Ltd

DISP 7SEG 0.56" QUAD Y-G 12DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ELF-511SYGWA/S530-E2

Active

Everlight Electronics Co Ltd

DISP 7SEG 0.56" QUAD Y-G 12DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ELF-511SYGWA/S530-E2

Color	Yellow-Green
Common Pin	Common Cathode
Current - Test	20 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	4.5 mcd
Number of Characters	4
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	12-DIP
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	1.984 in
Size / Dimension [y]	50.4 mm
Size / Dimension [z]	0.315 "
Size / Dimension [z]	8 mm
Voltage - Forward (Vf) (Typ)	2 V
Wavelength - Peak	575 nm

ELF-511 Series

Part	Package / Case	Package / Case	Package / Case	Digit/Alpha Size	Digit/Alpha Size	Wavelength - Peak	Number of Characters	Voltage - Forward (Vf) (Typ)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Current - Test	Common Pin	Display Type	Millicandela Rating	Color
Everlight Electronics Co Ltd ELF-511SYGWA/S530-E2	15.24 mm	0.6 in	12-DIP	0.56 in	14.22 mm	575 nm	4	2 V	0.748 in	1.984 in	0.315 "	8 mm	50.4 mm	19 mm	20 mA	Common Cathode	7-Segment	4.5 mcd	Yellow-Green

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	30	$ 2.79

Description

General part information

ELF-511 Series

Display Modules - LED Character and Numeric Yellow-Green 7-Segment 4 Character Common Cathode 2V 20mA 0.748" H x 1.984" W x 0.315" D (19.00mm x 50.40mm x 8.00mm) 12-DIP (0.600", 15.24mm)
