356-031-521-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-031-521-103
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-031-521-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 62 |
| Number of Positions/Bay/Row [custom] | 31 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
356-031 Series
| Part | Gender | Material - Insulation | Mounting Type | Contact Finish | Card Type | Pitch [x] | Pitch [x] | Termination Rows | Features | Contact Type | Number of Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Read Out | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Termination | Number of Positions/Bay/Row [custom] | Flange Feature | Color | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Polyester Thermoplastic | Panel Mount Through Hole | Gold | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1 | Card Guides | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 62 | Solder | 31 | 4-40 Flush Mount Threaded Insert Top Opening | Black | ||
EDAC Inc. | Female | Polyester Thermoplastic | Panel Mount Through Hole | Gold | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1 | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 62 | Solder | 31 | Flush Mount M3 Threaded Insert Top Opening | Black | |||
EDAC Inc. | Female | Polyester Thermoplastic | Panel Mount Through Hole | Gold | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1 | Card Guides | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 62 | Solder | 31 | 4-40 Flush Mount Threaded Insert Top Opening | Black | ||
EDAC Inc. | Female | Polyester Thermoplastic | Panel Mount Through Hole | Gold | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1 | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 62 | Solder | 31 | Floating Bobbin Flush Mount | Black | 0.116 in | 2.95 mm | |
EDAC Inc. | Female | Polyester Thermoplastic | Panel Mount Through Hole | Gold | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1 | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 62 | Solder | 31 | 4-40 Flush Mount Threaded Insert Top Opening | Black | |||
EDAC Inc. | Female | Polyester Thermoplastic | Panel Mount Through Hole | Gold | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1 | Card Guides | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 62 | Solder | 31 | 4-40 Flush Mount Threaded Insert Top Opening | Black | ||
EDAC Inc. | Female | Polyester Thermoplastic | Panel Mount Through Hole | Tin | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1 | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | -40 °C | 105 ░C | 62 | Solder | 31 | Floating Bobbin Flush Mount | Black | 0.116 in | 2.95 mm | |||
EDAC Inc. | Female | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1 | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 62 | Solder Eyelet(s) | 31 | Floating Bobbin Flush Mount | Black | 0.116 in | 2.95 mm | ||
EDAC Inc. | Female | Polyester Thermoplastic | Panel Mount Through Hole | Gold | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1 | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 62 | Solder | 31 | Floating Bobbin Flush Mount | Black | 0.116 in | 2.95 mm | |
EDAC Inc. | Female | Polyester Thermoplastic | Gold | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 1 | Cantilever | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Dual | 10 Áin | 0.25 Ám | -40 °C | 105 ░C | 62 | Solder Eyelet(s) | 31 | Flush Mount M3 Threaded Insert Top Opening | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
356-031 Series

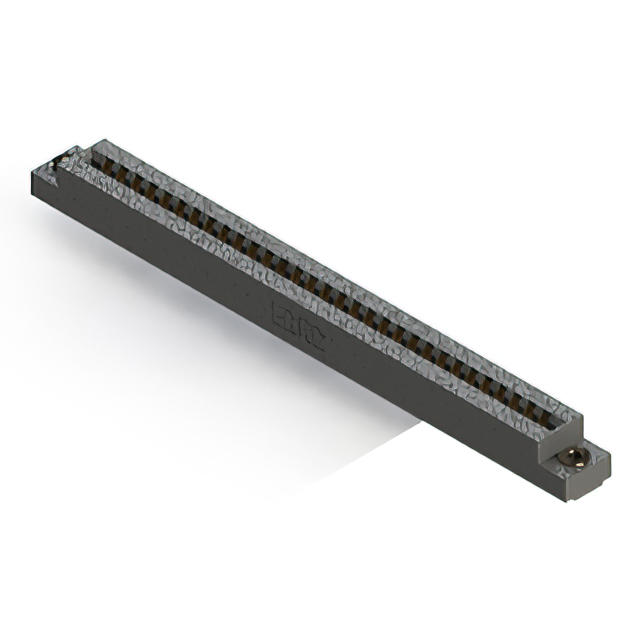

62 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
