704.032.2
ActiveEAO
CONFIG SW BODY PUSHBUTTON ILLUM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
704.032.2
ActiveEAO
CONFIG SW BODY PUSHBUTTON ILLUM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 704.032.2 | 704.032 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 04, EAO | 04, EAO |
| Actuator Type | Pushbutton, Round | Pushbutton, Round |
| Illumination | - | Illuminated, Illuminated - Green, Illuminated - Yellow |
| Panel Cutout Dimensions | 22.3 mm | 22.3 - 30.5 mm |
| Requires | Illumination Source, Contact Block(s) | Illumination Source, Contact Block(s) |
| Type | Momentary | Momentary |
704.032 Series
CONFIG SW BODY PUSHBUTTON ILLUM
| Part | Requires | (Select First, Then Apply Filters) Compatible Series | Actuator Type | Type | Panel Cutout Dimensions | Illumination |
|---|---|---|---|---|---|---|
EAO 704.032.2 | Contact Block(s), Illumination Source | 04, EAO | Pushbutton, Round | Momentary | 22.3 mm | |
EAO 704.032.7 | Contact Block(s), Illumination Source | 04, EAO | Pushbutton, Round | Momentary | 22.3 mm | Illuminated |
EAO 704.032.5 | Contact Block(s), Illumination Source | 04, EAO | Pushbutton, Round | Momentary | 22.3 mm | Illuminated - Green |
EAO 704.032.218 | Contact Block(s), Illumination Source | 04, EAO | Pushbutton, Round | Momentary | 30.5 mm | |
EAO 704.032.418 | Contact Block(s), Illumination Source | 04, EAO | Pushbutton, Round | Momentary | 30.5 mm | Illuminated - Yellow |
EAO 704.032.4 | Contact Block(s), Illumination Source | 04, EAO | Pushbutton, Round | Momentary | 22.3 mm | Illuminated - Yellow |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.42 | |
| 10 | $ 30.42 | |||
| 25 | $ 29.00 | |||
| 50 | $ 27.06 | |||
| 100 | $ 26.00 | |||
| 250 | $ 24.23 | |||
Description
General part information
704.032 Series

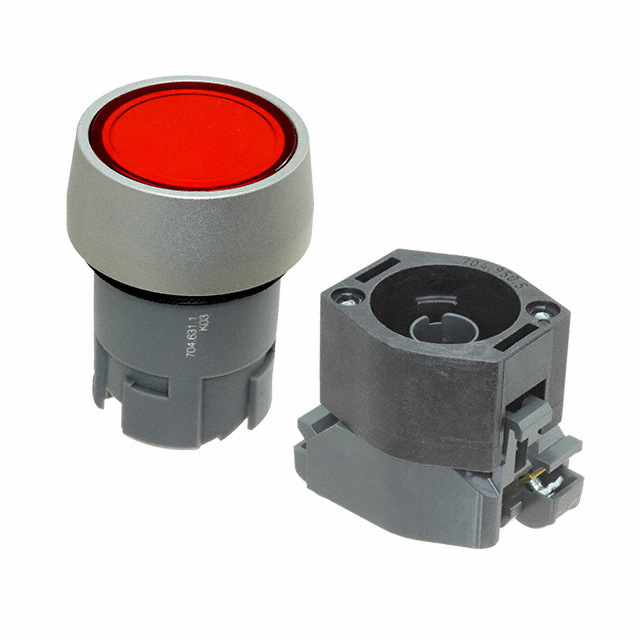

Configurable Switch Body Pushbutton, Round Illuminated - Red
