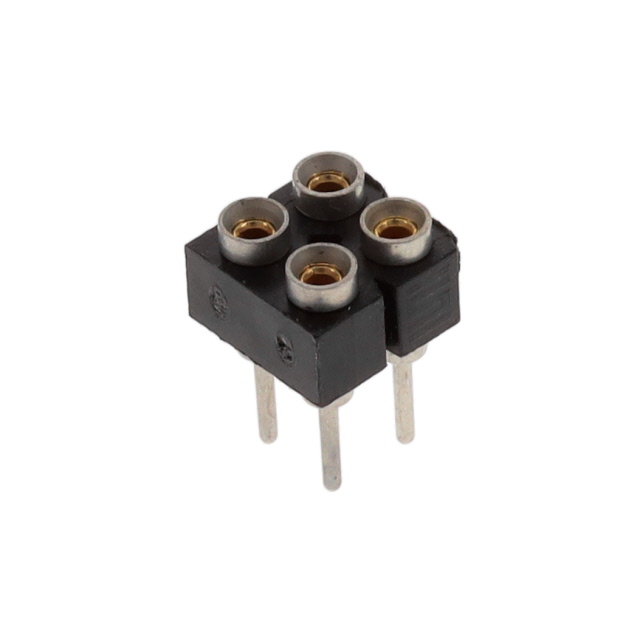

SD-102-T-2-N
ActiveSamtec Inc.
.100" DOUBLE ROW SCREW MACHINE S
Deep-Dive with AI
Search across all available documentation for this part.
SD-102-T-2-N
ActiveSamtec Inc.
.100" DOUBLE ROW SCREW MACHINE S
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SD-102-T-2-N |
|---|---|
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám |
| Contact Length - Post [x] | 3.18 mm |
| Contact Length - Post [x] | 0.125 in |
| Contact Material | Beryllium Copper |
| Contact Shape | Circular |
| Contact Type | Female Socket |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Material | Liquid Crystal Polymer (LCP) |
| Mounting Type | Through Hole |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Row Spacing - Mating [x] | 2.54 mm |
| Row Spacing - Mating [x] | 0.1 in |
| Termination | Solder |
SD-113 Series
IC & Component Sockets .100" Double Row Screw Machine Socket Strip
| Part | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Material | Insulation Color | Pitch - Mating | Pitch - Mating | Connector Type | Contact Length - Post | Contact Length - Post | Number of Positions Loaded | Contact Finish - Post | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Shape | Fastening Type | Number of Rows | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Insulation Material | Contact Finish - Mating | Mounting Type | Termination | Number of Positions | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Samtec Inc. | 30 Áin | 0.76 Ám | Beryllium Copper | Black | 0.1 in | 2.54 mm | Receptacle | 12.95 mm | 0.51 in | All | Tin | Female Socket | -55 °C | 125 °C | Circular | Push-Pull | 2 | 2.54 mm | 0.1 in | Liquid Crystal Polymer (LCP) | Gold | Through Hole | Solder | 12 | ||||
Samtec Inc. | 30 Áin | 0.76 Ám | Beryllium Copper | Black | 0.1 in | 2.54 mm | Receptacle | 4.57 mm | 0.18 in | All | Tin | Female Socket | -55 °C | 125 °C | Circular | Push-Pull | 2 | 2.54 mm | 0.1 in | Liquid Crystal Polymer (LCP) | Gold | Through Hole | Solder | 38 | ||||
Samtec Inc. | 30 Áin | 0.76 Ám | Beryllium Copper | Black | 0.1 in | 2.54 mm | Receptacle | All | Tin | Female Socket | -55 °C | 125 °C | Circular | Push-Pull | 2 | 2.54 mm | 0.1 in | Liquid Crystal Polymer (LCP) | Gold | Through Hole | Solder | 36 | 3.18 mm | 0.125 in | ||||
Samtec Inc. | 10 çin | 0.25 çm | Beryllium Copper | Black | 0.1 in | 2.54 mm | Receptacle | All | Gold | Female Socket | -55 °C | 125 °C | Circular | Push-Pull | 2 | 2.54 mm | 0.1 in | Liquid Crystal Polymer (LCP) | Gold | Through Hole | Solder | 28 | 10 çin | 0.25 çm | ||||
Samtec Inc. | 30 Áin | 0.76 Ám | Beryllium Copper | Black | 0.1 in | 2.54 mm | Receptacle | All | Tin | Female Socket | -55 °C | 125 °C | Circular | Push-Pull | 2 | 2.54 mm | 0.1 in | Liquid Crystal Polymer (LCP) | Gold | Through Hole | Solder | 60 | 3.18 mm | 0.125 in | ||||
Samtec Inc. | 10 çin | 0.25 çm | Beryllium Copper | Black | 0.1 in | 2.54 mm | Receptacle | All | Gold | Female Socket | -55 °C | 125 °C | Circular | Push-Pull | 2 | 2.54 mm | 0.1 in | Liquid Crystal Polymer (LCP) | Gold | Through Hole | Solder | 40 | 10 çin | 0.25 çm | ||||
Samtec Inc. | 30 Áin | 0.76 Ám | Beryllium Copper | Black | 0.1 in | 2.54 mm | Receptacle | All | Tin | Female Socket | -55 °C | 125 °C | Circular | Push-Pull | 2 | 2.54 mm | 0.1 in | Liquid Crystal Polymer (LCP) | Gold | Through Hole | Solder | 10 | 3.18 mm | 0.125 in | ||||
Samtec Inc. | Beryllium Copper | Black | 0.1 in | 2.54 mm | Receptacle | All | Tin | Female Socket | -55 °C | 105 ░C | Circular | Push-Pull | 2 | 2.54 mm | 0.1 in | Liquid Crystal Polymer (LCP) | Through Hole | Solder | 36 | 3.18 mm | 0.125 in | |||||||
Samtec Inc. | 30 Áin | 0.76 Ám | Beryllium Copper | Black | 0.1 in | 2.54 mm | Receptacle | All | Tin | Female Socket | -55 °C | 125 °C | Circular | Push-Pull | 2 | 2.54 mm | 0.1 in | Liquid Crystal Polymer (LCP) | Gold | Through Hole | Solder | 4 | 3.18 mm | 0.125 in | ||||
Samtec Inc. | 30 Áin | 0.76 Ám | Beryllium Copper | Black | 0.1 in | 2.54 mm | Receptacle | 9.14 mm | 0.36 in | All | Tin | Female Socket | -55 °C | 125 °C | Circular | Push-Pull | 2 | 2.54 mm | 0.1 in | Liquid Crystal Polymer (LCP) | Gold | Through Hole | Solder | 38 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.98 | |
| 50 | $ 0.76 | |||
| 100 | $ 0.62 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.53 | |||
| 2000 | $ 0.38 | |||
| 5000 | $ 0.34 | |||
Description
General part information
SD-113 Series
IC & Component Sockets .100" Double Row Screw Machine Socket Strip
