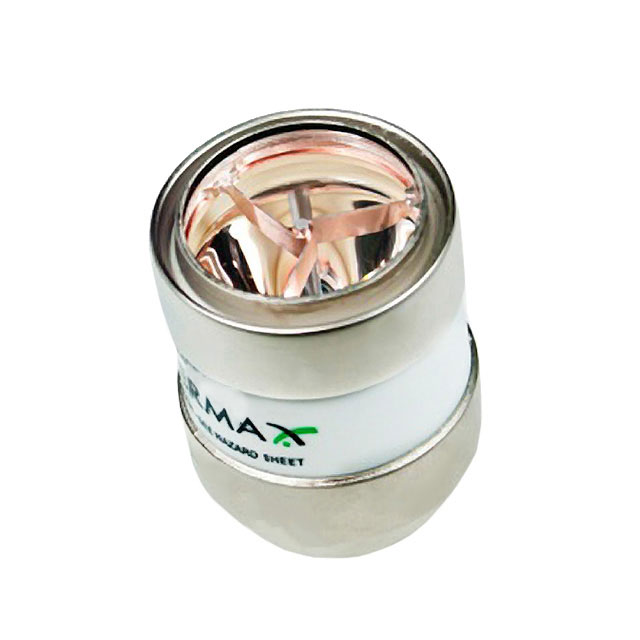

PE175BFA
ActiveExcelitas Technologies
LAMP PARABOLIC REFLECTOR 1"175W
PE175BFA
ActiveExcelitas Technologies
LAMP PARABOLIC REFLECTOR 1"175W
Description
General part information
PE175 Series
Xenon Short Arc Parabolic Lamp 23kV (Start), 11V ~ 14V (Operating) 2200lm Ceramic Body
Technical Specifications
Parameters and characteristics for this part
| Specification | PE175BFA |
|---|---|
| Output Power (IR) | 14 W |
| Output Power (Radiant) | 25 W |
| Output Power (UV) | 1.2 W |
| Output Power Types | Radiant, UV, IR |
| Style | Ceramic Body |
| Temperature (Max) | 150 °C |
| Type | Short Arc Parabolic Lamp |
| Visible Output | 2200 lm |
| Voltage (Operating) (Max) | 14 V |
| Voltage (Operating) (Min) | 11 V |
| Voltage (Start) | 23 kV |
