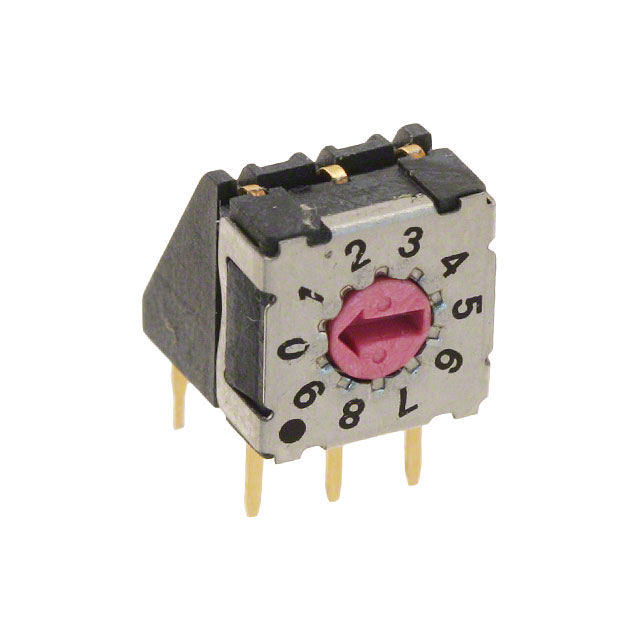

RDMAR10R1T
ActiveE-Switch
SWITCH ROTARY DIP BCD 0.1A 42V
Deep-Dive with AI
Search across all available documentation for this part.
RDMAR10R1T
ActiveE-Switch
SWITCH ROTARY DIP BCD 0.1A 42V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RDMAR10R1T |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | BCD |
| Contact Finish | Gold |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 25000 Steps |
| Features | IP67 - Dust Tight, Waterproof |
| Height Above Board | 7.39 mm |
| Height Above Board [z] | 0.291 in |
| Length [x] | 0.291 in |
| Length [x] | 7.4 mm |
| Mechanical Life | 25000 Steps |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 10 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -60 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | PC Pin |
| Voltage Rating | 42 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 65 | $ 4.19 | |
Description
General part information
RDMAR10 Series
Dip Switch BCD 10 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 42VDC
