ES-2021-T111
ActiveTE Connectivity Raychem Cable Protection

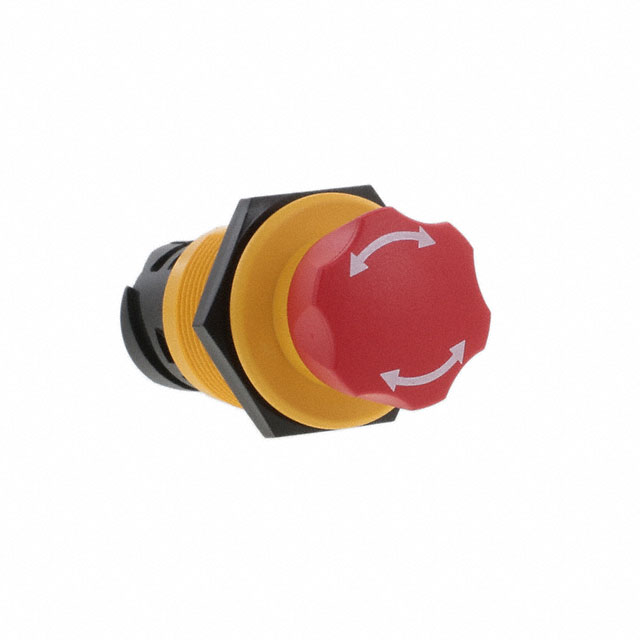

SWITCH ESTOP TWIST RESET 10A 32V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ES-2021-T111
ActiveTE Connectivity Raychem Cable Protection
SWITCH ESTOP TWIST RESET 10A 32V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ES-2021-T111 |
|---|---|
| Circuit | 3PST-2NO/1NC |
| Current Rating (Amps) | 10 A |
| Ingress Protection | IP69K, IP67 |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Panel Cutout Dimensions [diameter] | 30.5 mm |
| Reset Operation | Twist |
| Switch Function | On-Off, Off-On |
| Termination Style | Connector |
| Voltage Rating - DC | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 79.68 | |
| 5 | $ 69.56 | |||
| 10 | $ 65.60 | |||
| 25 | $ 60.70 | |||
| 50 | $ 57.22 | |||
| 100 | $ 53.94 | |||
Description
General part information
ES-20 Series
SWITCH ESTOP TWIST RESET 10A 32V
