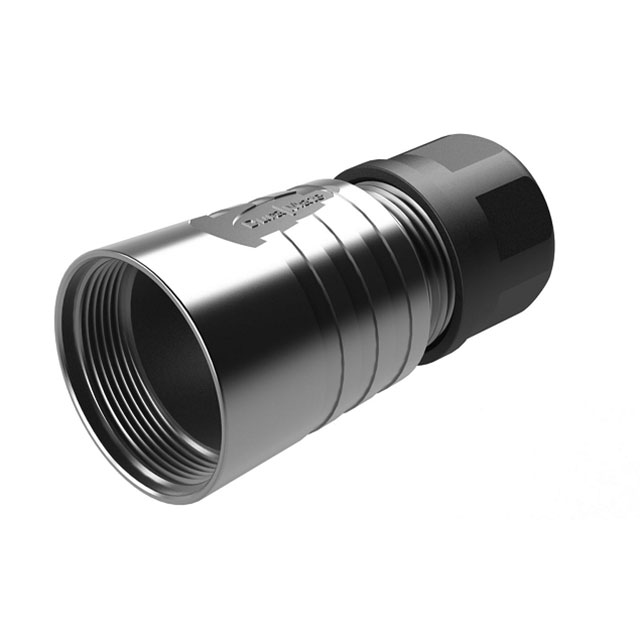

AHDMBS-24-SM01
ActiveAmphenol Sine Systems Corp
CONN BACKSHELL SZ24 BLK/SIL M38
Deep-Dive with AI
Search across all available documentation for this part.
AHDMBS-24-SM01
ActiveAmphenol Sine Systems Corp
CONN BACKSHELL SZ24 BLK/SIL M38
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AHDMBS-24-SM01 |
|---|---|
| Cable Exit | 180 ° |
| Cable Opening [custom] | 0.709 in, 0.472 in |
| Cable Opening [custom] | 12 mm |
| Cable Opening [custom] | 18 mm |
| Color | Black, Silver |
| Diameter - Outside [diameter] | 41.71 mm |
| Diameter - Outside [diameter] | 1.642 in |
| Includes | 1 Rubber Ring, 1 Compression Nut, 1 Cage Clamp, 1 Backshell, 2 O-Rings |
| Material | Aluminum Alloy |
| Plating | Nickel |
| Shell Size - Insert | 24 |
| Shielding | Unshielded |
| Thread Size | M38x1.5 |
| Type | Backshell |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.47 | |
| 10 | $ 11.94 | |||
| 25 | $ 11.48 | |||
| 50 | $ 11.02 | |||
| 200 | $ 10.40 | |||
| 400 | $ 9.49 | |||
| 600 | $ 8.87 | |||
| 1000 | $ 8.14 | |||
Description
General part information
AHDMBS Series
Black, Silver Connector Backshell M38x1.5 24
