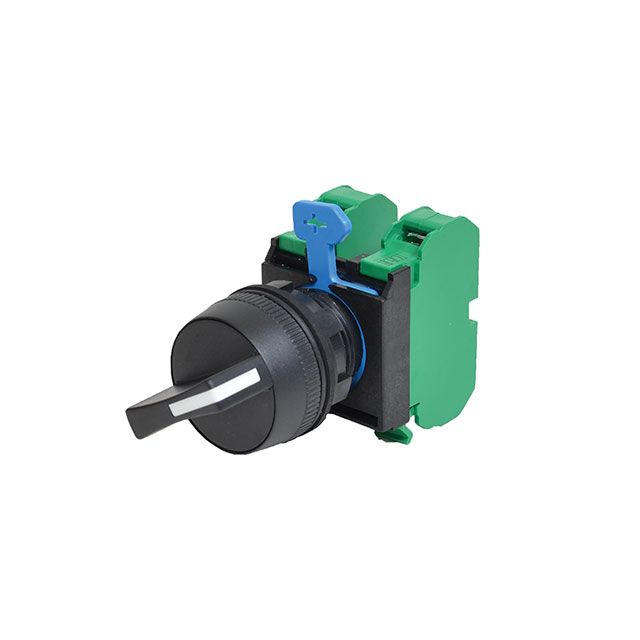

W22S2-HW-10/01

Active

c3controls

SWITCH SELECT 2POS DPST 10A 72V

Search across all available documentation for this part.

Active

c3controls

SWITCH SELECT 2POS DPST 10A 72V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	W22S2-HW-10/01	W22S2 Series

(Select First, Then Apply Filters) Compatible Series	-	22, c3controls
Actuator Type	-	Selector
Approval Agency	cULus, CE	cULus, CE
Circuit	DPST-NO/NC	SPST-NO, DPST-NO/NC
Current Rating (Amps)	2.5 A, 10 A	2.5 - 10 A
Depth Behind Flange	68.6 mm	45.6 - 68.6 mm
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP66	IP66
Mechanical Life	500000 Cycles	500000 Cycles
Number of Positions	2	2
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	22.5 mm	22.5 mm
Requires	-	Contact Block(s)
Switch Function	On-Off, Off-On	Off-On, On-Off
Termination Style	Screw Terminal	Screw Terminal
Type	Standard	Maintained, Standard
Voltage Rating - AC	72 V	72 V
Voltage Rating - DC	28 V	28 V

CONFIG SW BODY SELECT NON-ILLUM

Part	Panel Cutout Dimensions [diameter]	Actuator Type	Illumination	Requires	(Select First, Then Apply Filters) Compatible Series	Type	Termination Style	Circuit	Number of Positions	Ingress Protection	Switch Function	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Current Rating (Amps)	Approval Agency	Mechanical Life	Depth Behind Flange
c3controls W22S2-HW	22.5 mm	Selector	Non-Illuminated	Contact Block(s)	22, c3controls	Maintained
c3controls W22S2-HW-10	22.5 mm		Non-Illuminated			Standard	Screw Terminal	SPST-NO	2	IP66	Off-On	28 V	-40 °C	55 °C	72 V	2.5 A, 10 A	CE, cULus	500000 Cycles	45.6 mm
c3controls W22S2-HW-10/01	22.5 mm		Non-Illuminated			Standard	Screw Terminal	DPST-NO/NC	2	IP66	Off-On, On-Off	28 V	-40 °C	55 °C	72 V	2.5 A, 10 A	CE, cULus	500000 Cycles	68.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.60

General part information

Selector Switch 2 Position DPST-NO/NC 10A (AC), 2.5A (DC) 72 V Panel Mount
