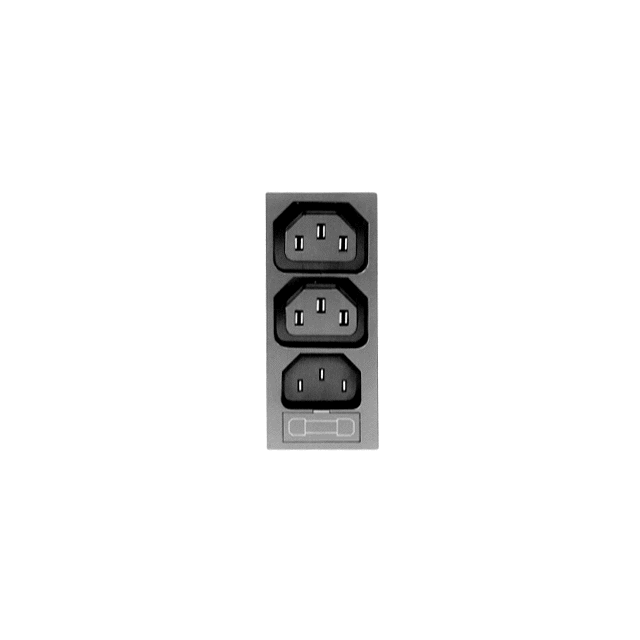

44R01-1131-250

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

Power Dynamics, Inc.

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	44R01-1131-250	44R01 Series

Approval Agency	UL, cUL	UL, cUL
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module, Receptacle, Female Sockets
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Number of Positions	-	3
Number of Positions	-	6
Number of Positions	-	3 per connection (3)
Panel Cutout Dimensions [x]	58.5 mm	58.5 - 176.5 mm
Panel Cutout Dimensions [y]	35 mm	35 mm
Termination	0.25 in	0.25 in
Termination	6.3 mm	6.3 mm
Termination	Quick Connect	Quick Connect, Solder

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Approval Agency	Connector Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Connector Style	Termination	Termination	Termination	Number of Positions [custom]	Number of Positions [custom]	Mounting Type	Material Flammability Rating	Number of Positions
Power Dynamics, Inc. 44R01-6131-150	cUL, UL	Receptacle, Male Blades - Module	176.5 mm	35 mm	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	3	6	Panel Mount, Snap-In	UL94 V-0
Power Dynamics, Inc. 44R01-1131-250	cUL, UL	Receptacle, Male Blades - Module	58.5 mm	35 mm	IEC 320-C14	0.25 in	6.3 mm	Quick Connect			Panel Mount, Snap-In	UL94 V-0
Power Dynamics, Inc. 44R01-3151-250	cUL, UL	Receptacle, Female Sockets	105.7 mm	35 mm	IEC 320-C14			Solder			Panel Mount, Snap-In	UL94 V-0	3 per connection (3)
Power Dynamics, Inc. 44R01-3131-150	cUL, UL	Receptacle, Male Blades - Module	105 mm	35 mm	IEC 320-C14	0.25 in	6.3 mm	Quick Connect			Panel Mount, Snap-In	UL94 V-0	3 per connection (3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In
