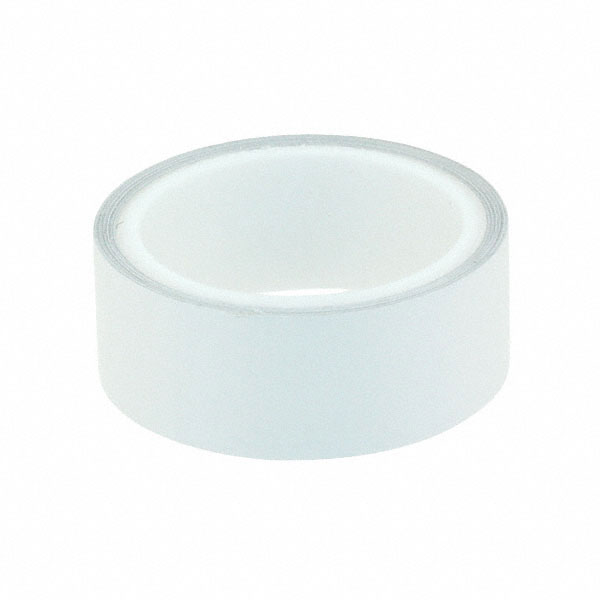

838-0.75-5

Active

3M (TC)

TAPE PROTECTIVE WHITE 3/4"X5YDS

Search across all available documentation for this part.

Active

3M (TC)

TAPE PROTECTIVE WHITE 3/4"X5YDS

Technical Specifications

Parameters and characteristics for this part

Specification	838-0.75-5

Adhesive	Acrylic
Backing, Carrier	Tedlar® PVF
Color	White
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Protective
Temperature Range [Max]	225 °F
Temperature Range [Max]	107 °C
Temperature Range [Min]	-73 °C
Temperature Range [Min]	-100 °F
Thickness	0.086 mm
Thickness	3.4 mils
Thickness	0.0034 "
Thickness - Adhesive	0.0013 "
Thickness - Adhesive	1.3 mils
Thickness - Adhesive	0.033 mm
Thickness - Backing, Carrier	0.053 mm
Thickness - Backing, Carrier	2.1 mils
Thickness - Backing, Carrier	0.0021 in
Usage	Sealing, Holding, Moisture Protection
Width	0.75 in
Width	19.05 mm
Width	0.75 in

Part	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Tape Type	Thickness	Thickness	Thickness	Color	Length	Length	Length	Usage	Shelf Life	Backing, Carrier	Temperature Range [Max]	Temperature Range [Min]	Temperature Range [Min]	Temperature Range [Max]	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Width	Width	Width	Shelf Life Start	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Adhesive
3M (TC) 838-0.75-5	16 °C 60 °F	27 °C 80 °F	Protective	0.086 mm	3.4 mils	0.0034 "	White	4.6 m	15 ft	5 yd	Holding Moisture Protection Sealing	18 Months	Tedlar® PVF	225 °F	-73 °C	-100 °F	107 °C	0.0013 "	1.3 mils	0.033 mm	0.75 in	19.05 mm	0.75 in	Date of Manufacture	0.053 mm	2.1 mils	0.0021 in	Acrylic
3M (TC) 838-0.5-5	16 °C 60 °F	27 °C 80 °F	Protective	0.086 mm	3.4 mils	0.0034 "	White	4.6 m	15 ft	5 yd	Holding Moisture Protection Sealing	18 Months	Tedlar® PVF	225 °F	-73 °C	-100 °F	107 °C	0.0013 "	1.3 mils	0.033 mm	0.5 in	0.5 in	12.7 mm	Date of Manufacture	0.053 mm	2.1 mils	0.0021 in	Acrylic
