MF-RHS600-0

Active

Bourns Inc.

PPTC RESETTABLE FUSE, RAD, RECTNGLR, 16V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Multifuse Product Guide

MF-RHS600-0

Active

Bourns Inc.

PPTC RESETTABLE FUSE, RAD, RECTNGLR, 16V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Multifuse Product Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MF-RHS600-0

Approval Agency	cURus, cUL
Current - Hold (Ih) (Max) [Max]	6 A
Current - Max [Max]	100 A
Current - Trip (It)	12 A
Height - Seated (Max) [Max] [z]	22.4 mm
Height - Seated (Max) [Max] [z]	0.882 "
Lead Spacing	5.1 mm
Lead Spacing	0.201 in
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Resistance - Initial (Ri) (Min) [Min]	0.009 Ohms
Resistance - Post Trip (R1) (Max) [Max]	0.0252 Ohms
Size / Dimension [x]	0.344 in
Size / Dimension [x]	8.75 mm
Size / Dimension [y]	0.118 in
Size / Dimension [y]	3 mm
Time to Trip	6.5 s
Type	Polymeric
Voltage - Max [Max]	16 V

MF-RHS Series

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Mounting Type	Resistance - Post Trip (R1) (Max) [Max]	Current - Trip (It)	Time to Trip	Current - Max [Max]	Current - Hold (Ih) (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Resistance - Initial (Ri) (Min) [Min]	Package / Case	Approval Agency	Voltage - Max [Max]	Lead Spacing	Lead Spacing	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Current - Hold (Ih) (Max)
Bourns Inc. MF-RHS450-0	0.744 "	18.9 mm	Polymeric	Through Hole	0.04 Ohms	9 A	5.5 s	100 A	4.5 A	0.331 in	0.118 in	3 mm	8.4 mm	0.0145 Ohms	Disc Radial	cUL cURus	16 V	5.1 mm	0.201 in	125 °C	-40 °C
Bourns Inc. MF-RHS600-0	0.882 "	22.4 mm	Polymeric	Through Hole	0.0252 Ohms	12 A	6.5 s	100 A	6 A	0.344 in	0.118 in	3 mm	8.75 mm	0.009 Ohms	Disc Radial	cUL cURus	16 V	5.1 mm	0.201 in	125 °C	-40 °C
Bourns Inc. MF-RHS400-0			Polymeric	Through Hole	44 mOhms	8 A	5 s	100 A		0.331 in	0.118 in	3 mm	8.4 mm	0.016 Ohms	Disc Radial	cUL cURus	16 V	5.1 mm	0.201 in	125 °C	-40 °C	0.705 "	17.9 mm	4 A
Bourns Inc. MF-RHS700-0	0.917 "	23.3 mm	Polymeric	Through Hole		14 A	6.8 s	100 A	7 A	0.465 in	0.118 in	3 mm	11.8 mm	0.0085 Ohms	Disc Radial	cUL cURus	16 V	5.1 mm	0.201 in	125 °C	-40 °C
Bourns Inc. MF-RHS1000-0	1.098 "		Polymeric	Through Hole	0.009 Ohms	20 A		100 A	10 A	0.567 "	0.142 "	3.6 mm	14.4 mm	0.0042 Ohms	Disc Radial	cUL cURus	16 V			125 °C	-40 °C		27.9 mm
Bourns Inc. MF-RHS900-0	0.98 in	24.9 mm	Polymeric	Through Hole	0.0098 Ohms	18 A		100 A	9 A	0.567 "	0.142 "	3.6 mm	14.4 mm	0.0046 Ohms	Disc Radial	cUL cURus	16 V			125 °C	-40 °C
Bourns Inc. MF-RHS750-0	0.957 "	24.3 mm	Polymeric	Through Hole	0.0168 Ohms	15 A	7 s	100 A	7.5 A	0.465 in	0.118 in	3 mm	11.8 mm	0.0073 Ohms	Disc Radial	cUL cURus	16 V	5.1 mm	0.201 in	125 °C	-40 °C
Bourns Inc. MF-RHS550-0			Polymeric	Through Hole	32 mOhms	11 A		100 A	5.5 A	0.366 in	0.118 in	3 mm	9.3 mm	0.012 Ohms	Disc Radial	cUL cURus	16 V	5.1 mm	0.201 in	125 °C	-40 °C	0.768 in	19.5 mm
Bourns Inc. MF-RHS1100-0	1.098 "		Polymeric	Through Hole	0.0083 Ohms	22 A	11.2 s	100 A		0.685 in	0.142 "	3.6 mm	17.4 mm	3.8 mOhms	Disc Radial	cUL cURus	16 V			125 °C	-40 °C		27.9 mm	11 A
Bourns Inc. MF-RHS500-0	0.756 in	19.2 mm	Polymeric	Through Hole	0.038 Ohms	10 A	5.8 s	100 A	5 A						Disc Radial	cUL cURus	16 V	5.1 mm	0.201 in	125 °C	-40 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.84
		10	$ 0.76
		500	$ 0.43
		1000	$ 0.38
		5000	$ 0.34
		10000	$ 0.33
Newark	Each	1	$ 0.89
		10	$ 0.72
		25	$ 0.71
		50	$ 0.69
		100	$ 0.68
		500	$ 0.58
		1000	$ 0.54

Description

General part information

MF-RHS Series

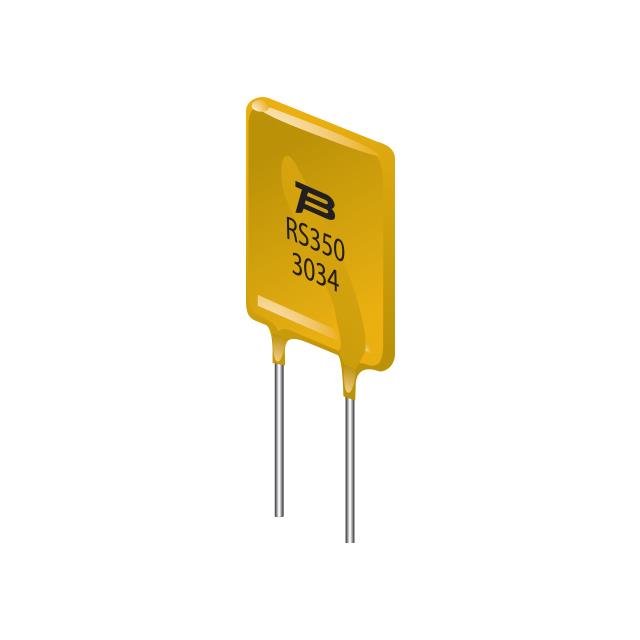

Polymeric PTC Resettable Fuse 16V 6 A Ih Through Hole Radial, Disc
