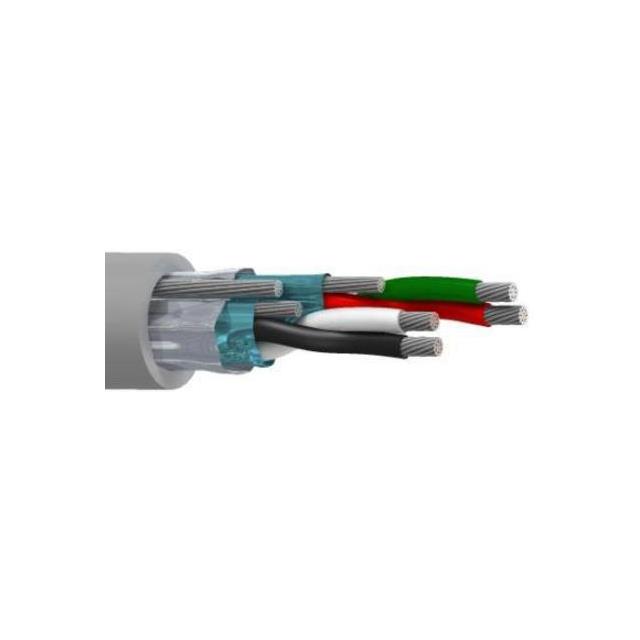

8723MN 0061000

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG BLU

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 22AWG BLU

Technical Specifications

Parameters and characteristics for this part

Specification	8723MN 0061000

Cable Type	Multi-Pair
Conductor Insulation	Polypropylene (PP)
Conductor Material	Copper, Tinned
Conductor Strand	34 AWG
Conductor Strand [custom]	19 Strands
Jacket (Insulation) Diameter	5.79 mm
Jacket (Insulation) Diameter	0.228 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.406 mm
Jacket (Insulation) Thickness	0.016 in
Jacket Color	Blue
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	22 AWG

Part	Shield Type	Voltage	Conductor Material	Jacket (Insulation) Material	Jacket Color	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand	Conductor Insulation	Wire Gauge	Shield Coverage	Shield Material	Number of Conductors	Cable Type	Jacket (Insulation) Diameter	Jacket (Insulation) Diameter	Length	Length	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]
Belden Inc. 8723MN 0061000	Foil	300 V	Copper Tinned	Poly-Vinyl Chloride (PVC)	Blue	-20 C	80 C	19 Strands	34 AWG	Polypropylene (PP)	22 AWG	100 %	Aluminum	4	Multi-Pair	5.79 mm	0.228 in	1000 ft	304.8 m	0.406 mm	0.016 in
Belden Inc. 8723MN 006100	Foil	300 V	Copper Tinned	Poly-Vinyl Chloride (PVC)	Blue	-20 C	80 C	19 Strands	34 AWG	Polypropylene (PP)	22 AWG	100 %	Aluminum	4	Multi-Pair	5.79 mm	0.228 in			0.406 mm	0.016 in	30.5 m	100 ft
Belden Inc. 8723MN 008100	Foil	300 V	Copper Tinned	Poly-Vinyl Chloride (PVC)	Gray	-20 C	80 C	19 Strands	34 AWG	Polypropylene (PP)	22 AWG	100 %	Aluminum	4	Multi-Pair	5.79 mm	0.228 in			0.406 mm	0.016 in	30.5 m	100 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.07

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Blue 22 AWG Foil 1000.0' (304.8m)
