A17689-14

Active

Laird Technologies - Thermal Materials

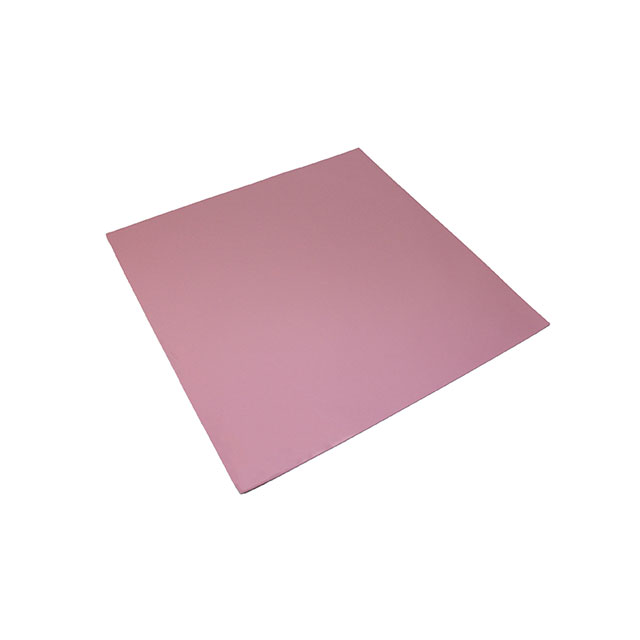

THERM PAD 457.2X457.2MM PINK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Thermal Interface Solutions

A17689-14

Active

Laird Technologies - Thermal Materials

THERM PAD 457.2X457.2MM PINK

Deep-Dive with AI

DocumentsDatasheet Thermal Interface Solutions

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A17689-14

Adhesive	Tacky - One Side
Color	Pink
Material	Silicone, Ceramic Filled
Outline [x]	457.2 mm
Outline [y]	457.2 mm
Shape	Square
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Thermal Conductivity	5 W/m-K
Thickness	0.14 in
Thickness	3.56 mm
Type	Gap Filler Pad, Sheet

A17689 Series

Part	Shelf Life Start	Outline [y]	Outline [x]	Adhesive	Thickness	Thickness	Thermal Conductivity	Type	Shelf Life	Color	Shape	Material	Thickness [z]	Thickness [z]	Thickness [custom]
Laird Technologies - Thermal Materials A17689-13	Date of Shipment	457.2 mm	457.2 mm	Tacky - One Side	0.13 in	3.3 mm	5 W/m-K	Gap Filler Pad Sheet	24 Months	Pink	Square	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17689-03	Date of Shipment	457.2 mm	457.2 mm	Tacky - One Side	0.03 in	0.762 mm	5 W/m-K	Gap Filler Pad Sheet	24 Months	Pink	Square	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17689-14	Date of Shipment	457.2 mm	457.2 mm	Tacky - One Side	0.14 in	3.56 mm	5 W/m-K	Gap Filler Pad Sheet	24 Months	Pink	Square	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17689-18	Date of Shipment	457.2 mm	457.2 mm	Tacky - One Side	0.18 in	4.57 mm	5 W/m-K	Gap Filler Pad Sheet	24 Months	Pink	Square	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17689-11	Date of Shipment	457.2 mm	457.2 mm	Tacky - One Side			5 W/m-K	Gap Filler Pad Sheet	24 Months	Pink	Square	Ceramic Filled Silicone	2.79 mm	0.11 in
Laird Technologies - Thermal Materials A17689-19	Date of Shipment	457.2 mm	457.2 mm	Tacky - One Side		4.83 mm	5 W/m-K	Gap Filler Pad Sheet	24 Months	Pink	Square	Ceramic Filled Silicone			0.19 in
Laird Technologies - Thermal Materials A17689-10	Date of Shipment	457.2 mm	457.2 mm	Tacky - One Side	0.1 in	2.54 mm	5 W/m-K	Gap Filler Pad Sheet	24 Months	Pink	Square	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17689-08	Date of Shipment	457.2 mm	457.2 mm	Tacky - One Side	0.08 "	80 mils	5 W/m-K	Gap Filler Pad Sheet	24 Months	Pink	Square	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17689-09	Date of Shipment	457.2 mm	457.2 mm	Tacky - One Side	0.09 in	2.286 mm	5 W/m-K	Gap Filler Pad Sheet	24 Months	Pink	Square	Ceramic Filled Silicone
Laird Technologies - Thermal Materials A17689-06	Date of Shipment	457.2 mm	457.2 mm	Tacky - One Side	0.06 in	1.524 mm	5 W/m-K	Gap Filler Pad Sheet	24 Months	Pink	Square	Ceramic Filled Silicone

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	4	$ 761.88

Description

General part information

A17689 Series

Thermal Pad Pink 457.20mm x 457.20mm Square Tacky - One Side

Documents

Technical documentation and resources

Datasheet

Thermal Interface Solutions

Datasheet
