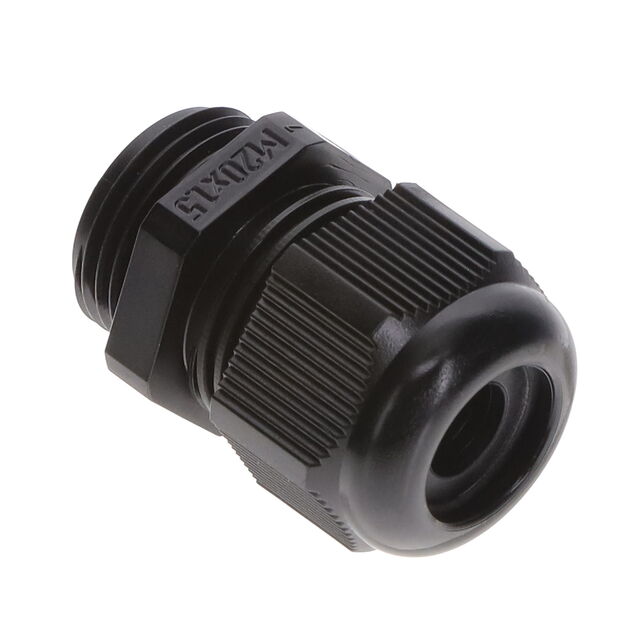

Specification	50.620 PA/RSW

Color	Black
Includes	Sealing Ring
Ingress Protection Description	Dust Tight, Waterproof
Ingress Protection IP Rating	IP68
Material	Polyamide (PA6), Nylon 6
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-40 °C
Outside Cable Diameter (Max)	0.512 in
Outside Cable Diameter (Min)	0.197 in
Thread Diameter	20 mm
Thread Length	0.315 in
Thread Pitch	1.5 mm
Type	Cable Gland

50.62 Series

Part	Color	Thread Length	Material	Operating Temperature (Max)	Operating Temperature (Min)	Thread Diameter	Thread Pitch	Outside Cable Diameter (Min)	Ingress Protection IP Rating	Ingress Protection Description	Outside Cable Diameter (Max)	Type	Includes
Jacob GmbH 50.620 ES	Silver	0.236 in	Stainless Steel	100 °C	-40 °C	20 mm	1.5 mm	0.354 in	IP68	Dust Tight Waterproof	0.512 in	Cable Gland	O-Ring Seal
Jacob GmbH 50.620 M/BS	Silver	0.236 in	Brass Nickel Plated	100 °C	-20 °C	20 mm	1.5 mm	0.354 in	IP68	Dust Tight Waterproof	0.512 in	Cable Gland	O-Ring Seal Strain Relief
Jacob GmbH 50.620 PA/RSW	Black	0.315 in	Nylon 6 Polyamide (PA6)	100 °C	-40 °C	20 mm	1.5 mm	0.197 in	IP68	Dust Tight Waterproof	0.512 in	Cable Gland	Sealing Ring
Jacob GmbH 50.620 M/EMVD	Silver	0.236 in	Brass Nickel Plated	100 °C	-40 °C	20 mm	1.5 mm	0.354 in	IP68	Dust Tight Waterproof	0.512 in	Cable Gland	O-Ring Seal
Jacob GmbH 50.620 M/R/AV	Silver	0.236 in	Brass Nickel Plated	100 °C	-20 °C	20 mm	1.5 mm	0.197 in	IP66 IP68	Dust Tight Water Resistant Waterproof	0.512 in	Cable Gland	O-Ring Seal
Jacob GmbH 50.620 M/AV	Silver	0.236 in	Brass Nickel Plated	100 °C	-20 °C	20 mm	1.5 mm	0.354 in	IP66 IP68	Dust Tight Water Resistant Waterproof	0.512 in	Cable Gland	O-Ring Seal
Jacob GmbH 50.620 PA/FL	Gray	0.315 in	Nylon 6 Polyamide (PA6)	100 °C	-40 °C	20 mm	1.5 mm	0.315 in	IP68	Dust Tight Waterproof	0.512 in	Cable Gland	Sealing Ring
Jacob GmbH 50.620PA/R7035	Gray	0.315 in	Nylon 6 Polyamide (PA6)	100 °C	-40 °C	20 mm	1.5 mm	0.197 in	IP68	Dust Tight Waterproof	0.512 in	Cable Gland	Sealing Ring
Jacob GmbH 50.620 PA/SW	Black	0.315 in	Nylon 6 Polyamide (PA6)	100 °C	-40 °C	20 mm	1.5 mm	0.315 in	IP68	Dust Tight Waterproof	0.512 in	Cable Gland	Sealing Ring
Jacob GmbH 50.620 PA7035L	Gray	0.591 in	Nylon 6 Polyamide (PA6)	100 °C	-40 °C	20 mm	1.5 mm	0.315 in	IP68	Dust Tight Waterproof	0.512 in	Cable Gland	Sealing Ring
