Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.23 | |
| 10 | $ 7.85 | |||
| 25 | $ 7.36 | |||
| 50 | $ 7.00 | |||
| 100 | $ 6.67 | |||
| 300 | $ 6.17 | |||
| 500 | $ 5.95 | |||
| 1000 | $ 5.67 | |||
General part information

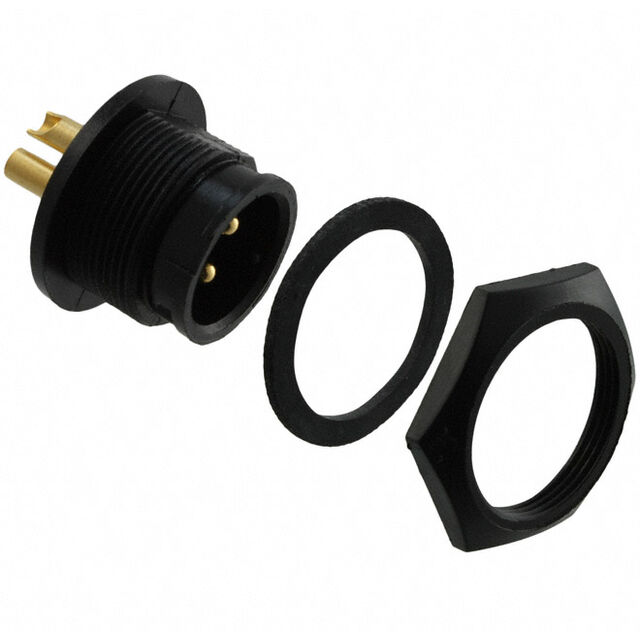

2 Position Circular Connector Receptacle, Male Pins Solder Cup
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 4182-2PG-3ES |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Fastening Type | Bayonet Lock |
| Ingress Protection | Weathertight |
| Mounting Feature | Bulkhead - Front Side Nut |
| Number of Positions | 2 |
| Operating Temperature [Max] | 115 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 V |
CONN RCPT MALE 2P GOLD SLDR CUP
| Part | Voltage Rating | Ingress Protection | Orientation | Fastening Type | Contact Finish - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Feature | Primary Material | Color | Contact Material | Shielding | Connector Type | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft 4182-2PG-3ES | 600 V | Weathertight | Keyed | Bayonet Lock | Gold | -40 °C | 115 °C | Bulkhead - Front Side Nut | Plastic | Black | Brass | Unshielded | Male Pins, Receptacle | 2 |
