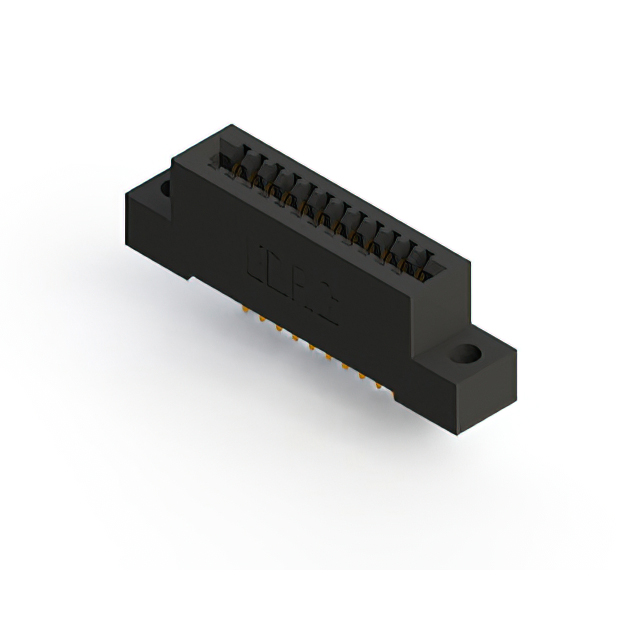

892-012-540-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 12POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
892-012-540-104
ActiveEDAC Inc.
CONN EDGE SINGLE FML 12POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 892-012-540-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyphenylene Sulfide (PPS) |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions/Bay/Row [custom] | 12 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
892-012 Series
...
| Part | Contact Type | Number of Positions | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Gender | Color | Contact Finish | Termination Rows | Termination | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Mounting Type | Number of Positions/Bay/Row [custom] | Material - Insulation | Card Type | Contact Material | Number of Rows | Read Out | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | 12 | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Female | Black | Gold | 1 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 12 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Copper Alloy | 1 | Single | |
EDAC Inc. | Cantilever | 12 | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Female | Black | Gold | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 6 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Copper Alloy | 2 | Dual | Card Extender | ||
EDAC Inc. | Cantilever | 12 | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Female | Black | Gold | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 6 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Copper Alloy | 2 | Dual | |||
EDAC Inc. | Cantilever | 12 | 2.54 mm | 0.1 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Female | Black | Gold | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 6 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Copper Alloy | 2 | Dual | ||||
EDAC Inc. | Cantilever | 12 | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Female | Black | Gold | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 12 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Copper Alloy | 1 | Single | |||
EDAC Inc. | Cantilever | 12 | 2.54 mm | 0.1 in | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Female | Black | Gold | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Board Edge Straddle Mount | 6 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Copper Alloy | 2 | Dual | Card Extender | ||
EDAC Inc. | Cantilever | 12 | 2.54 mm | 0.1 in | 3.96 mm | Flush Mount Top Opening Unthreaded | 0.156 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Female | Black | Gold | 1 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 12 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Copper Alloy | 1 | Single | |
EDAC Inc. | Cantilever | 12 | 2.54 mm | 0.1 in | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Female | Black | Gold | 2 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole Right Angle | 6 | Polyphenylene Sulfide (PPS) | Non Specified - Dual Edge | Copper Alloy | 2 | Dual | |||
EDAC Inc. | Cantilever | 12 | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Top Opening Unthreaded | 0.128 " | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Female | Black | Gold | 1 | Solder | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 12 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Copper Alloy | 1 | Single | |
EDAC Inc. | Cantilever | 12 | 2.54 mm | 0.1 in | 3.25 mm | Flush Mount Side Opening Unthreaded | 0.128 " | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Female | Black | Gold | 1 | Wire Wrap | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Through Hole | 12 | Polyphenylene Sulfide (PPS) | Non Specified - Single Edge | Copper Alloy | 1 | Single |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
892-012 Series
12 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Black
