415-0097-150

Active

Cinch Connectivity Solutions Johnson

COAX CBL U.FL TO SMA 5.9"

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Johnson

COAX CBL U.FL TO SMA 5.9"

Technical Specifications

Parameters and characteristics for this part

Specification	415-0097-150

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	U.FL (UMCC) Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type [diameter]	1.37 mm
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	150 mm
Length [x]	5.906 "
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	U.FL (UMCC) to SMA

COAX CBL U.FL TO SMA 5.9"

Part	Operating Temperature [Max]	Operating Temperature [Min]	Length [x]	Length [x]	1st Contact Gender	Color	2nd Contact Gender	Style	1st Connector Mounting Feature	Features	Overall Impedance	1st Connector	2nd Connector	Frequency - Max [Max]	2nd Connector Mounting Type	Cable Type [diameter]	1st Connector Mounting Type
Cinch Connectivity Solutions Johnson 415-0097-150	90 °C	-40 °C	150 mm	5.906 "	Female	Black	Female	U.FL (UMCC) to SMA	Bulkhead - Front Side Nut	Shielded	50 Ohms	SMA Jack	U.FL (UMCC) Plug, Right Angle	6000 MHz	Free Hanging (In-Line)	1.37 mm	Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

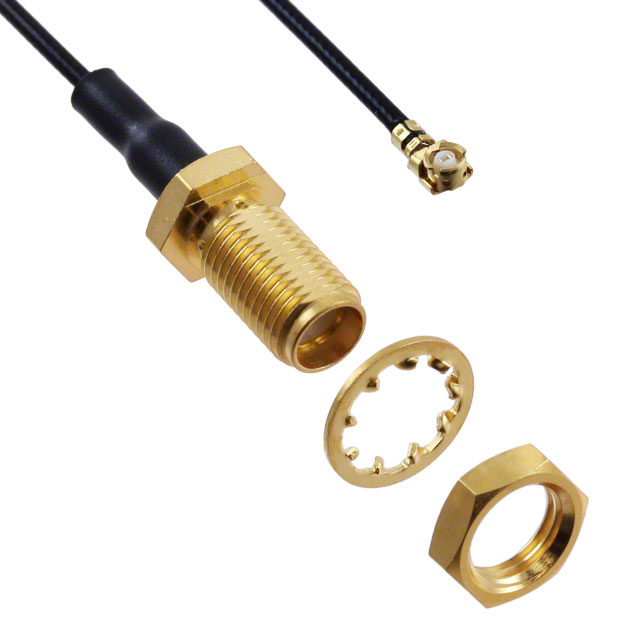

Cable Assembly Coaxial U.FL (UMCC) to SMA 1.37mm OD Coaxial Cable 5.906" (150.00mm)

Technical documentation and resources

No documents available
