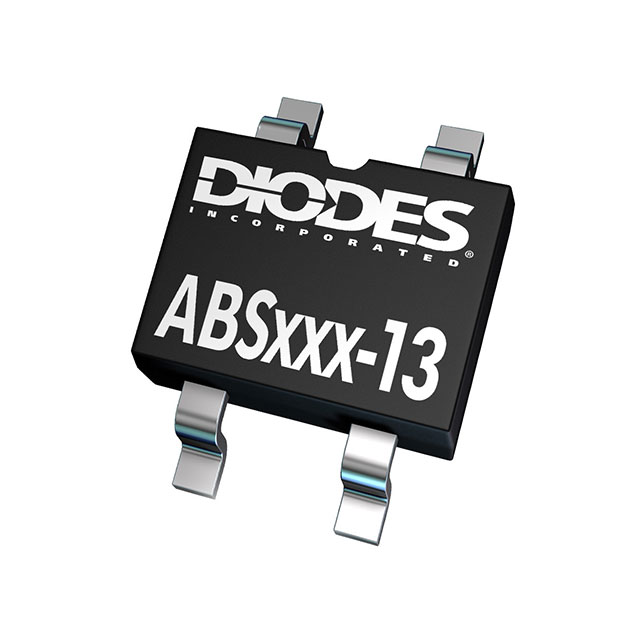

ABS10A-13

Active

Diodes Inc

BRIDGE RECTIFIER, SINGLE PHASE, 1 KV, 1 A, 1.1 V, SOPA, 4 PINS

Search across all available documentation for this part.

Active

Diodes Inc

BRIDGE RECTIFIER, SINGLE PHASE, 1 KV, 1 A, 1.1 V, SOPA, 4 PINS

Technical Specifications

Parameters and characteristics for this part

Specification	ABS10A-13

Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Diode Type	Single Phase
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-SOPA
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.1 V
Voltage - Peak Reverse (Max) [Max]	1000 V

1.5A SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Part	Current - Average Rectified (Io)	Supplier Device Package	Technology	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Current - Reverse Leakage @ Vr	Package / Case	Voltage - Peak Reverse (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Diode Type	Voltage - Forward (Vf) (Max) @ If [Max]
Diodes Inc ABS10A-13	1 A	4-SOPA	Standard	1.1 V	Surface Mount	5 µA	4-SMD Gull Wing	1000 V	-55 °C	150 °C	Single Phase
Diodes Inc ABS10M-13	1 A	4-SOPA (Type WX)	Standard		Surface Mount	10 çA	4-SMD Gull Wing	1000 V	-55 °C	150 °C	Single Phase	950 mV
Diodes Inc ABS10B-13	1.5 A	4-SOPA	Standard	1.1 V	Surface Mount	5 µA	4-SMD Gull Wing	1000 V	-55 °C	150 °C	Single Phase
