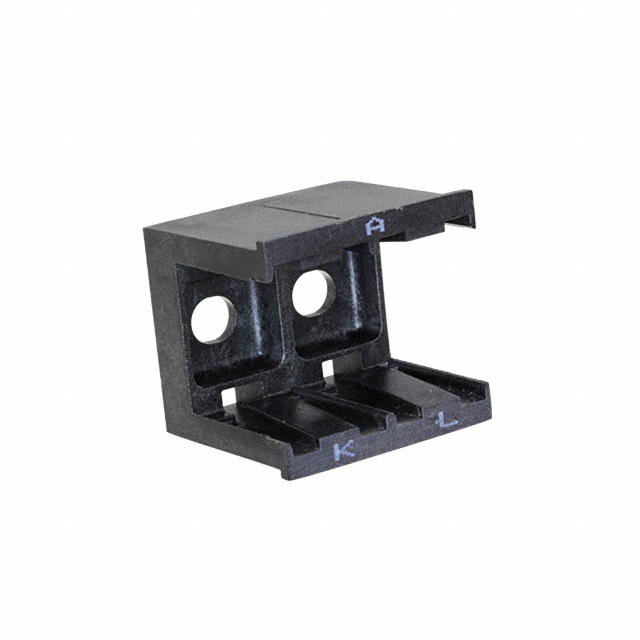

DCR-1A-02

Active

TE Connectivity Raychem Cable Protection

CONN RAIL 1.036" L X 0.975" W

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN RAIL 1.036" L X 0.975" W

Technical Specifications

Parameters and characteristics for this part

Part	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]
TE Connectivity Raychem Cable Protection DCR-1A-04	Rail	2.072 in	0.89 in	52.63 mm	24.77 mm	0.975 in	22.61 mm
TE Connectivity Raychem Cable Protection DCR-1A-07	Rail	3.626 in	0.89 in	92.1 mm	24.77 mm	0.975 in	22.61 mm
TE Connectivity Raychem Cable Protection DCR-1A-02	Rail	1.036 "	0.89 in	26.31 mm	24.77 mm	0.975 in	22.61 mm
TE Connectivity Raychem Cable Protection DCR-1A-04 [V003]	Rail	2.072 in	0.89 in	52.63 mm	24.77 mm	0.975 in	22.61 mm
TE Connectivity Raychem Cable Protection DCR-1A-08 [V003]	Rail	4.144 in	0.89 in	105.26 mm	24.77 mm	0.975 in	22.61 mm
TE Connectivity Raychem Cable Protection DCR-1A-02-4021	Rail	1.036 "	0.89 in	26.31 mm	24.77 mm	0.975 in	22.61 mm
TE Connectivity Raychem Cable Protection DCR-1A-05 [V003]	Rail	2.59 in	0.89 in	65.79 mm	24.77 mm	0.975 in	22.61 mm
TE Connectivity Raychem Cable Protection DCR-1A-03-4021	Rail	1.554 "	0.89 in	39.47 mm		0.975 in		22.61 mm	24.77 mm
TE Connectivity Raychem Cable Protection DCR-1A-14	Rail	7.252 in	0.89 in	184.2 mm	24.77 mm	0.975 in	22.61 mm
TE Connectivity Raychem Cable Protection DCR-1A-11	Rail	5.698 "	0.89 in	144.73 mm	24.77 mm	0.975 in	22.61 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Rail Contact Size
