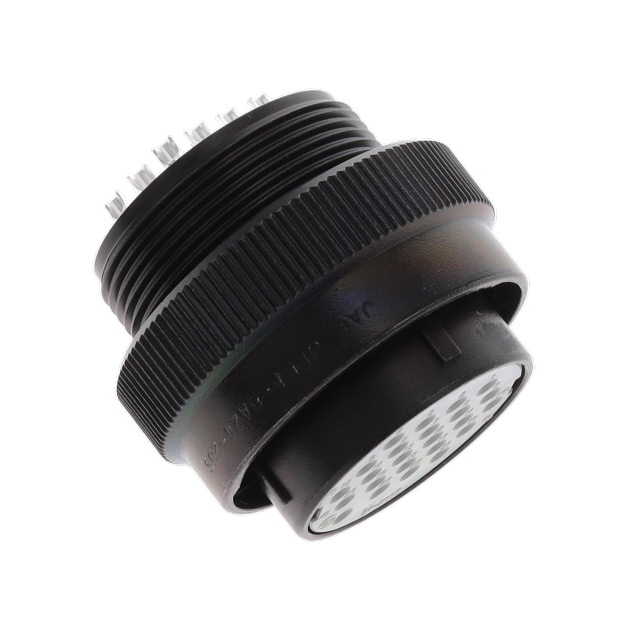

JL05-6A24-28S-R

Active

JAE Electronics

CONN PLUG FMALE 24POS SIL SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JL05-6A24-28S-R

Active

JAE Electronics

CONN PLUG FMALE 24POS SIL SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JL05-6A24-28S-R

Applications	Telecommunications, Marine, Industrial
Cable Opening [diameter]	32.8 mm
Cable Opening [diameter]	1.291 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Features	Ground Lug, Coupling Nut
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Synthetic Resin
Mounting Type	Free Hanging (In-Line)
Number of Positions [custom]	PE
Number of Positions [custom]	24
Number of Positions [custom]	23
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Zinc
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	28
Shell Size - Insert [Min]	24
Termination	Solder

JL05-6A2 Series

Part	Insert Material	Connector Type	Number of Positions	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Shielding	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Type	Fastening Type	Mounting Type	Orientation	Contact Size	Shell Material	Shell Finish	Ingress Protection	Material Flammability Rating	Note	Contact Type	Features	Current Rating (Amps)	Primary Material	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions	Color	Termination	Applications	Shell Size - Insert	Contact Material	Contact Finish - Mating	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Cable Opening [custom]	Cable Opening [custom]
JAE Electronics JL05-6A20-29PC-F0-R	Synthetic Resin	Plug Housing	17 (16 + PE)	Black	-55 °C	125 °C	Circular	Unshielded	29	20	For Male Pins	Bayonet Lock	Free Hanging (In-Line)	N	16	Aluminum	Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Contacts Not Included	Crimp	Coupling Nut
JAE Electronics JL05-6A22-14P-R	Synthetic Resin	Male Pins Plug			-55 °C	125 °C						Bayonet Lock	Free Hanging (In-Line)	N		Aluminum Alloy	Zinc	IP67 - Dust Tight Waterproof				Coupling Nut Ground Lug	13 A	Metal	29.6 mm	1.165 in	19	Black	Solder	Industrial Marine Telecommunications	22-14	Copper Alloy	Silver
JAE Electronics JL05-6A22-14PC-F0-R	Synthetic Resin	Plug Housing		Black	-55 °C	125 °C	Circular	Unshielded			For Male Pins	Bayonet Lock	Free Hanging (In-Line)	N	16	Aluminum	Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Contacts Not Included	Crimp	Coupling Nut					19				22-14
JAE Electronics JL05-6A20-29SC-F0-R	Synthetic Resin	Plug Housing	17 (16 + PE)	Black	-55 °C	125 °C	Circular	Unshielded	29	20	For Female Sockets	Bayonet Lock	Free Hanging (In-Line)	N	16	Aluminum	Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Contacts Not Included	Crimp	Coupling Nut
JAE Electronics JL05-6A20-15SC-F0-R	Synthetic Resin	Plug Housing		Black	-55 °C	125 °C	Circular	Unshielded	15	20	For Female Sockets	Bayonet Lock	Free Hanging (In-Line)	N	12	Aluminum	Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Contacts Not Included	Crimp	Coupling Nut												1	6
JAE Electronics JL05-6A22-23PC-F0-R	Synthetic Resin	Plug Housing		Black	-55 °C	125 °C	Circular	Unshielded	23	22	For Male Pins	Bayonet Lock	Free Hanging (In-Line)	N	12	Aluminum	Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Contacts Not Included	Crimp	Coupling Nut					8
JAE Electronics JL05-6A24-11SC-F0-R	Synthetic Resin	Plug Housing		Black	-55 °C	125 °C	Circular	Unshielded			For Female Sockets	Bayonet Lock	Free Hanging (In-Line)	N	8 12	Aluminum	Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Contacts Not Included	Crimp	Coupling Nut					8 9				24-11					PE
JAE Electronics JL05-6A24-28S-R	Synthetic Resin	Female Sockets Plug			-55 °C	125 °C			28	24		Bayonet Lock	Free Hanging (In-Line)	N		Aluminum Alloy	Zinc	IP67 - Dust Tight Waterproof				Coupling Nut Ground Lug	13 A	Metal	32.8 mm	1.291 in		Black	Solder	Industrial Marine Telecommunications		Copper Alloy	Silver				PE	24	23
JAE Electronics JL05-6A20-30ASC-F0-R	Synthetic Resin	Plug Housing		Black	-55 °C	125 °C	Circular	Unshielded	30 A	20 A	For Female Sockets	Bayonet Lock	Free Hanging (In-Line)	N	20	Aluminum	Zinc	IP67 - Dust Tight Waterproof	UL94 V-0	Contacts Not Included	Crimp	Coupling Nut					30
JAE Electronics JL05-6A20-29S-R	Synthetic Resin	Female Sockets Plug	17 (16 + PE)		-55 °C	125 °C			29	20		Bayonet Lock	Free Hanging (In-Line)	N		Aluminum Alloy	Zinc	IP67 - Dust Tight Waterproof				Coupling Nut Ground Lug	13 A	Metal				Black	Solder	Industrial Marine Telecommunications		Copper Alloy	Silver							1.059 in	26.9 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 136.36
		10	$ 125.13
		25	$ 120.32
		50	$ 116.31

Description

General part information

JL05-6A2 Series

24 (23 + PE) Position Circular Connector Plug, Female Sockets Solder
