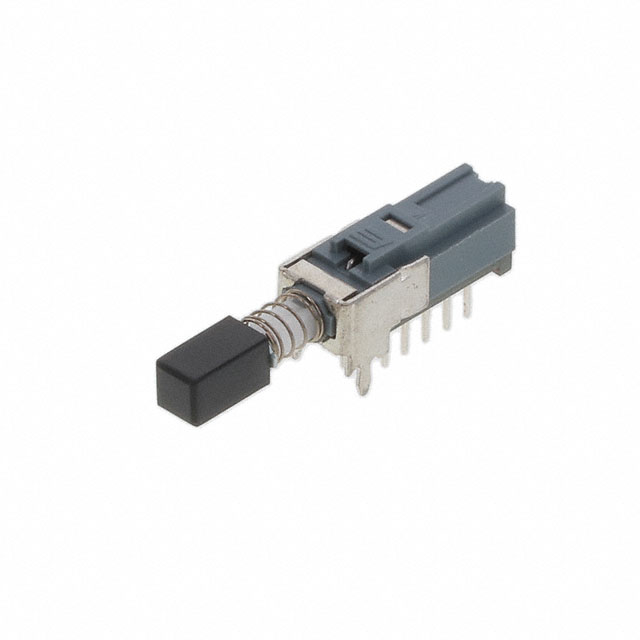

PBH4UEEKZXNAG1SBLK

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; 4PDT; 0.1A/30VDC; BLACK; ILLUMIN: NONE

Deep-Dive with AI

Search across all available documentation for this part.

PBH4UEEKZXNAG1SBLK

Active

E-Switch

SWITCH: PUSH-BUTTON; POS: 2; 4PDT; 0.1A/30VDC; BLACK; ILLUMIN: NONE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PBH4UEEKZXNAG1SBLK

Actuator Marking	No Marking
Actuator Type	Button, Square
Circuit	4PDT
Color - Actuator/Cap	Black
Current Rating (Amps)	100 mA
Electrical Life	10000 Cycles
Mechanical Life	30000 Steps
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Switch Function	On-On
Termination Style	PC Pin
Type	Standard
Voltage Rating - DC	30 V

PBH4 Series

Part	Voltage Rating - DC	Actuator Marking	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Circuit	Mounting Type	Termination Style	Mechanical Life	Type	Electrical Life	Actuator Type	Color - Actuator/Cap
E-Switch PBH4UEENAG1RBLK	30 V	No Marking	100 mA	-20 C	70 °C	On-On	4PDT	Through Hole Right Angle	PC Pin	30000 Steps	Standard	10000 Cycles	Button Round	Black
E-Switch PBH4UEEKZXNAGV	30 V	No Marking	100 mA	-20 C	70 °C	On-On	4PDT	Through Hole Right Angle	PC Pin	30000 Steps	Standard	10000 Cycles	Plunger for Cap	White
E-Switch PBH4UOANAGX	30 V	No Marking	100 mA	-20 C	70 °C	On-Mom	4PDT	Through Hole Right Angle	PC Pin	30000 Steps	Standard	10000 Cycles	Plunger for Cap	White
E-Switch PBH4UEENAGV1RDGR	30 V	No Marking	100 mA	-20 C	70 °C	On-On	4PDT	Through Hole Right Angle	PC Pin	30000 Steps	Standard	10000 Cycles	Button Round	Dark Gray
E-Switch PBH4UEEKZXNAGV1RLGR	30 V	No Marking	100 mA	-20 C	70 °C	On-On	4PDT	Through Hole Right Angle	PC Pin	30000 Steps	Standard	10000 Cycles	Button Round	Gray Light
E-Switch PBH4UOANAG1RRED	30 V	No Marking	100 mA	-20 C	70 °C	On-Mom	4PDT	Through Hole Right Angle	PC Pin	30000 Steps	Standard	10000 Cycles	Button Round	Red
E-Switch PBH4UEEKZXNAGX	30 V	No Marking	100 mA	-20 C	70 °C	On-On	4PDT	Through Hole Right Angle	PC Pin	30000 Steps	Standard	10000 Cycles	Plunger for Cap	White
E-Switch PBH4UEESNPNAGX	30 V	No Marking	100 mA	-20 C	70 °C	On-On	4PDT	Through Hole Right Angle	PC Pin	30000 Steps	Standard	10000 Cycles	Plunger for Cap	White
E-Switch PBH4UEEKZXNAG1SBLK	30 V	No Marking	100 mA	-20 C	70 °C	On-On	4PDT	Through Hole Right Angle	PC Pin	30000 Steps	Standard	10000 Cycles	Button Square	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.14
		10	$ 1.02
		176	$ 0.87
		1056	$ 0.74
TME	N/A	528	$ 1.36

Description

General part information

PBH4 Series

Pushbutton Switch 4PDT Standard Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
