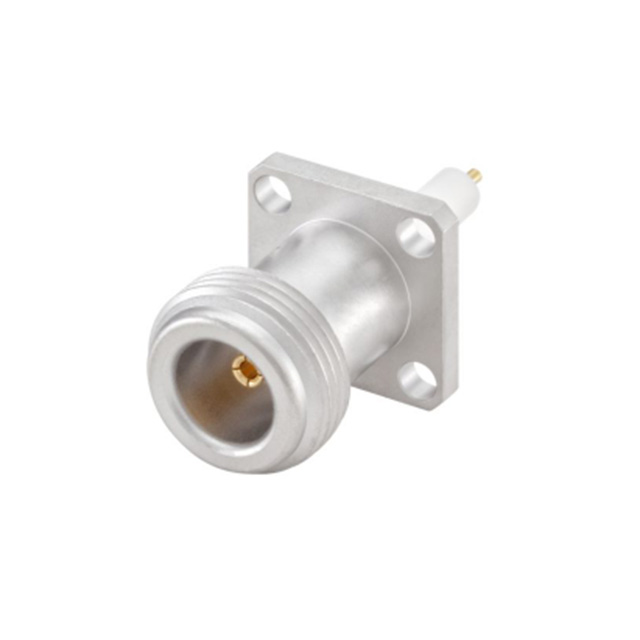

53K413-500N5

Active

Rosenberger

RF N CONNECTOR, FEMALE, PANEL MOUNT, JACK, ROHS COMPLIANT

Search across all available documentation for this part.

Active

Rosenberger

RF N CONNECTOR, FEMALE, PANEL MOUNT, JACK, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	53K413-500N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Center Contact Material	Center Contact Plating	Ingress Protection	Voltage Rating	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Shield Termination	Mounting Feature	Frequency - Max [Max]	Contact Termination	Impedance	Dielectric Material	Connector Type	Body Finish	Number of Ports	Features	Mating Cycles	Connector Style
Rosenberger 53K413-500N5	Beryllium Copper	Gold	IP67 - Dust Tight Waterproof	500 V	Silver	155 °C	-55 °C	Brass	Solder	Flange	11 GHz	Solder	50 Ohms	Polytetrafluoroethylene (PTFE)	Female Socket Jack	White Bronze	1	Extended Insulation	500	N Type

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
