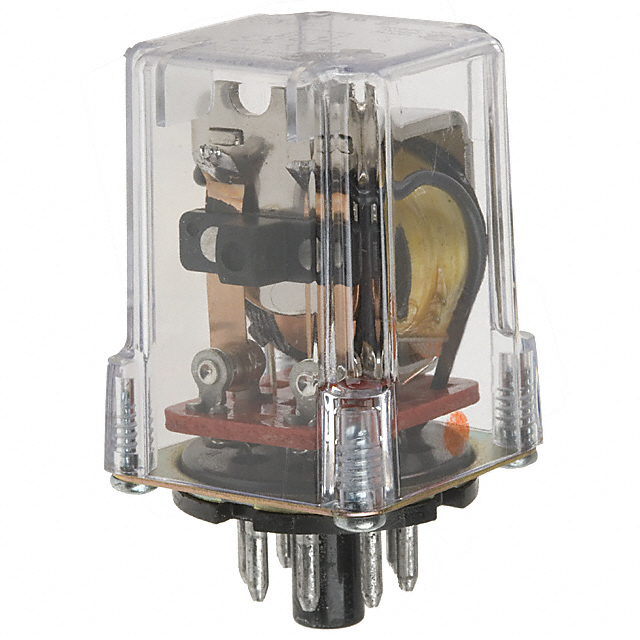

KRP-11AG-12

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 10A 12V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 10A 12V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Contact Form	Coil Type	Switching Voltage	Mounting Type	Must Operate Voltage	Coil Current	Coil Insulation	Load - Max Switching [Max]	Relay Type	Approval Agency	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Coil Resistance	Coil Voltage	Contact Rating (Current)	Features
TE Connectivity Potter & Brumfield Relays KRP-11AG-12	Plug In 8 Pin (Octal)	DPDT (2 Form C)	Non Latching	240 VAC	Socketable	10.2 VAC	168 mA	Class B	2400 VA	General Purpose	CSA UR	Silver Cadmium Oxide (AgCdO)	-45 °C	55 °C	24 Ohms	12 VAC/DC	10 A
TE Connectivity Potter & Brumfield Relays KRP-11AG-240	Plug In 8 Pin (Octal)	DPDT (2 Form C)	Non Latching	240 VAC	Socketable	204 VAC	8.8 mA	Class B	2400 VA	General Purpose	CSA UR	Silver Cadmium Oxide (AgCdO)	-45 °C	55 °C	9.11 kOhms	240 VAC	10 A
TE Connectivity Potter & Brumfield Relays KRP-11AG-24	Plug In 8 Pin (Octal)	DPDT (2 Form C)	Non Latching	240 VAC	Socketable		84 mA	Class B	2400 VA	General Purpose	CSA UR	Silver Cadmium Oxide (AgCdO)	-45 °C	55 °C		24 VAC	10 A
TE Connectivity Potter & Brumfield Relays KRP-11AN-24	Plug In 8 Pin (Octal)	DPDT (2 Form C)	Non Latching	240 VAC	Socketable		84 mA	Class B	2400 VA	General Purpose	CSA UR	Silver Cadmium Oxide (AgCdO)	-45 °C	55 °C		24 VAC	10 A	Lighted Indicator

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General Purpose Relay DPDT (2 Form C) 12VAC Coil Socketable
