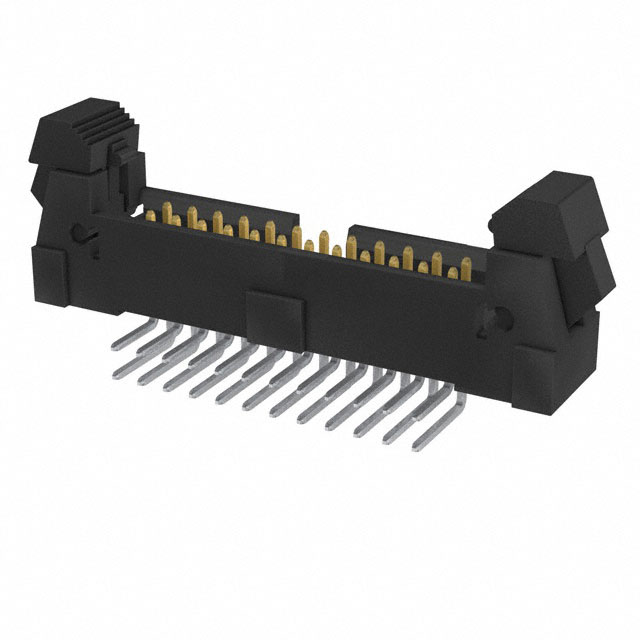

Specification	EHT-112-01-FM-D-RA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	3 µin
Contact Length - Mating	0.12 in
Contact Length - Post	0.12 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Eject Hooks, Latch Lock
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.3 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	24 pos
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

EHT Series

...

Part	Shrouding	Contact Type	Features	Contact Shape	Contact Material	Insulation Color	Connector Type	Material Flammability Rating	Contact Length - Mating	Number of Positions Loaded	Contact Finish - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Fastening Type	Current Rating	Number of Positions	Termination	Insulation Height	Style	Insulation Material	Row Spacing - Mating	Pitch - Mating	Contact Finish - Post	Contact Finish Thickness - Mating	Number of Rows	Mounting Type	Number of Positions Loaded	Contact Length - Post
Samtec Inc. EHT-110-01-S-D-SM-20	Shrouded - 4 Wall	Male Pin	Keying Slot	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in	19	Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	20	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	30 µin	2	Surface Mount
Samtec Inc. EHT-118-01-S-D	Shrouded - 4 Wall	Male Pin	Keying Slot	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	36	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	30 µin	2	Through Hole	All	0.114 in
Samtec Inc. EHT-108-01-H-D	Shrouded - 4 Wall	Male Pin	Keying Slot	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	16	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Gold	30 µin	2	Through Hole	All	0.114 in
Samtec Inc. EHT-117-01-S-D-01	Shrouded - 4 Wall	Male Pin	Keying Slot	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in	33	Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	34	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	30 µin	2	Through Hole		0.114 in
Samtec Inc. EHT-107-01-F-D-SM-P	Shrouded - 4 Wall	Male Pin	Keying Slot Pick and Place	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	14	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	3 µin	2	Surface Mount	All
Samtec Inc. EHT-107-01-S-D-SM-K-TR	Shrouded - 4 Wall	Male Pin	Keying Slot Pick and Place	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	14	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	30 µin	2	Surface Mount	All
Samtec Inc. EHT-110-01-SM-D-SM-LC-K	Shrouded - 4 Wall	Male Pin	Board Lock Keying Slot Pick and Place	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	20	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	30 µin	2	Surface Mount	All
Samtec Inc. EHT-125-01-F-D-SM	Shrouded - 4 Wall	Male Pin	Keying Slot	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	50	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	3 µin	2	Surface Mount	All
Samtec Inc. EHT-125-01-L-D-SM-SR-K-TR	Shrouded - 4 Wall	Male Pin	Keying Slot Pick and Place Strain Relief	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	50	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	15 µin	2	Surface Mount	All
Samtec Inc. EHT-113-01-F-D	Shrouded - 4 Wall	Male Pin	Keying Slot	Square	Phosphor Bronze	Black	Header	UL94 V-0	0.12 in		Gold	125 °C	-55 °C	Eject Hooks Latch Lock	3 A	26	Solder	0.37 in	Board Cable/Wire	Liquid Crystal Polymer (LCP)	0.079 in	0.079 in	Tin	3 µin	2	Through Hole	All	0.114 in
