200AWMSP1T1A1M2QE

Active

E-Switch

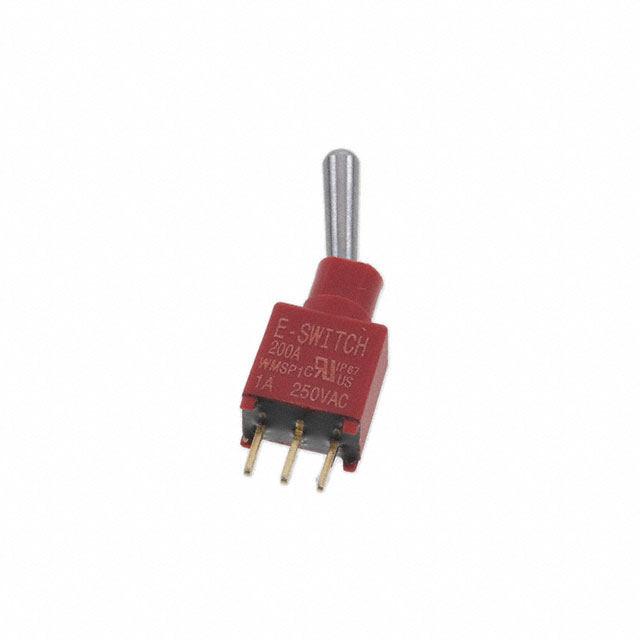

SWITCH TOGGLE SPDT 3A 120V

Deep-Dive with AI

Search across all available documentation for this part.

200AWMSP1T1A1M2QE

Active

E-Switch

SWITCH TOGGLE SPDT 3A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.86
		10	$ 3.45
		25	$ 3.27
		50	$ 3.15
		100	$ 2.99
		315	$ 2.85
		630	$ 2.62
		1260	$ 2.51

Description

General part information

200AWMSP1 Series

Toggle Switch SPDT Through Hole

Documents

Technical documentation and resources

No documents available

Specification	200AWMSP1T1A1M2QE	200AWMSP1 Series

Actuator Length [x]	10.16 mm	5.08 - 10.16 mm
Actuator Material	Brass, Chrome Plated	Brass, Chrome Plated
Actuator Type	Standard Round	Standard Round
Bushing Thread	Unthreaded	Unthreaded
Circuit	SPDT	SPDT
Current Rating (Amps)	3 A	0.4 - 3 A
Electrical Life	50000 Cycles	50000 Cycles
Features	Epoxy Sealed Terminals	Epoxy Sealed Terminals
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle, Vertical, Right Angle
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-30 ░C	-30 ░C
Switch Function	On-On	On-On, On-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - AC	120 V	20 - 120 V
Voltage Rating - DC	28 V	20 - 28 V

Part	Actuator Material	Bushing Thread	Illumination	Voltage Rating - AC	Termination Style	Features	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Ingress Protection	Circuit	Current Rating (Amps)	Actuator Type	Mounting Type	Electrical Life	Voltage Rating - DC	Actuator Length [x]
E-Switch 200AWMSP1T2A1VS2QE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	120 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	3 A	Standard Round	Through Hole	50000 Cycles	28 V	6.1 mm
E-Switch 200AWMSP1T2A1VS2RE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	20 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	0.4 VA	Standard Round	Through Hole	50000 Cycles	20 V	6.1 mm
E-Switch 200AWMSP1T1A1M6RE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	20 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	0.4 VA	Standard Round	Through Hole, Right Angle	50000 Cycles	20 V	10.16 mm
E-Switch 200AWMSP1T1A1M2RE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	20 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	0.4 VA	Standard Round	Through Hole	50000 Cycles	20 V	10.16 mm
E-Switch 200AWMSP1T1A1M7QE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	120 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	3 A	Standard Round	Right Angle, Through Hole, Vertical	50000 Cycles	28 V	10.16 mm
E-Switch 200AWMSP1T1A1VS2QE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	120 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	3 A	Standard Round	Through Hole	50000 Cycles	28 V	10.16 mm
E-Switch 200AWMSP1T2A1M2RE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	20 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	0.4 VA	Standard Round	Through Hole	50000 Cycles	20 V	6.1 mm
E-Switch 200AWMSP1T1A1M2QE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	120 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	3 A	Standard Round	Through Hole	50000 Cycles	28 V	10.16 mm
E-Switch 200AWMSP1T3A1M6QE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	120 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	3 A	Standard Round	Through Hole, Right Angle	50000 Cycles	28 V	5.08 mm
E-Switch 200AWMSP1T2A1M7QE	Brass, Chrome Plated	Unthreaded	Non-Illuminated	120 V	PC Pin	Epoxy Sealed Terminals	-30 ░C	85 °C	On-On	IP67 - Dust Tight, Waterproof	SPDT	3 A	Standard Round	Right Angle, Through Hole, Vertical	50000 Cycles	28 V	6.1 mm
