2D3UM

Active

Altech Corporation

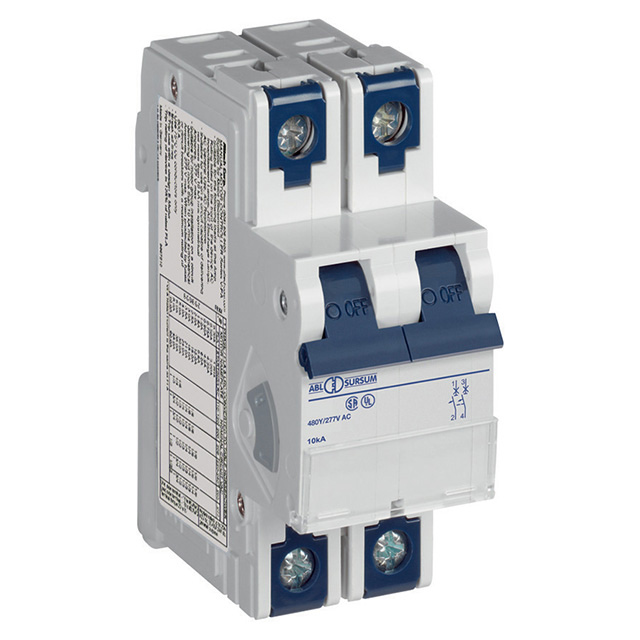

CIR BRKR THRM-MAG 3A LEVER

Search across all available documentation for this part.

Active

Altech Corporation

CIR BRKR THRM-MAG 3A LEVER

Technical Specifications

Parameters and characteristics commom to parts in this series

CIRCUIT BREAKER 3A 2P UL1077

Part	Breaker Type	Illumination	Actuator Type	Approval Agency	Current Rating (Amps)	Mounting Type	Number of Poles	Voltage Rating - AC	Voltage Rating - DC
Altech Corporation 2D3UR	Thermal Magnetic	None	Lever	CE, cURus, UL1077	3 A	DIN Rail	2	480 V
Altech Corporation 2D3UM	Thermal Magnetic	None	Lever	CSA, UL508, VDE	3 A	DIN Rail	2	480 V	80 V
Altech Corporation 2D3DL	Thermal Magnetic	None	Lever	CE, cULus, UL489	3 A	DIN Rail	2		250 V
Altech Corporation 2D3UL	Thermal Magnetic	None	Lever	CE, cULus, UL489	3 A	DIN Rail	2	480 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circuit Breaker Thermal Magnetic 3A 480 V AC 80 V DC Lever DIN Rail
