Q-0D05C0003108i

Active

Amphenol Custom Cable

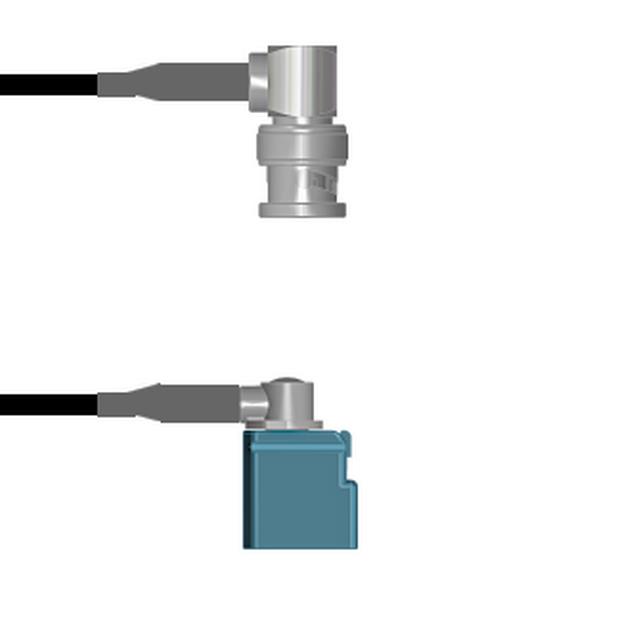

CBL ASSY BNC-FAKRA PLUG-JACK 9'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D05C0003108i

Active

Amphenol Custom Cable

CBL ASSY BNC-FAKRA PLUG-JACK 9'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D05C0003108i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	Fakra Jack, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-174
Color	Black
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	2.7 m
Length	9 ft
Length	108 in
Overall Impedance	50 Ohms
Style	BNC to Fakra

Q-0D05C0 Series

Part	1st Contact Gender	Overall Impedance	Features	2nd Connector Mounting Type	Cable Type	Color	2nd Connector	Length	Length	Length	Frequency - Max [Max]	2nd Contact Gender	Style	1st Connector	1st Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-0D05C0005003M	Male	50 Ohms	Shielded	Free Hanging (In-Line)	RG-316	Copper	Fakra Jack Right Angle	3 m	118.1 in	9.8 '	3 GHz	Female	BNC to Fakra	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D05C00030.5M	Male	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174	Black	Fakra Jack Right Angle	50 cm	19.69 "		3 GHz	Female	BNC to Fakra	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D05C00031.5M	Male	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174	Black	Fakra Jack Right Angle	1.5 m	59.1 in	4.9 ft	3 GHz	Female	BNC to Fakra	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D05C0003072i	Male	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174	Black	Fakra Jack Right Angle	1.8 m	72 in	6 ft	3 GHz	Female	BNC to Fakra	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D05C0005018i	Male	50 Ohms	Shielded	Free Hanging (In-Line)	RG-316	Copper	Fakra Jack Right Angle				3 GHz	Female	BNC to Fakra	BNC Plug Right Angle	Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0D05C0005002M	Male	50 Ohms	Shielded	Free Hanging (In-Line)	RG-316	Copper	Fakra Jack Right Angle	2 m	78.7 in	6.6 ft	3 GHz	Female	BNC to Fakra	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D05C0005036i	Male	50 Ohms	Shielded	Free Hanging (In-Line)	RG-316	Copper	Fakra Jack Right Angle	91.44 cm	36 in		3 GHz	Female	BNC to Fakra	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D05C0003108i	Male	50 Ohms	Shielded	Free Hanging (In-Line)	RG-174	Black	Fakra Jack Right Angle	2.7 m	108 in	9 ft	3 GHz	Female	BNC to Fakra	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D05C0005.75M	Male	50 Ohms	Shielded	Free Hanging (In-Line)	RG-316	Copper	Fakra Jack Right Angle	750 mm	29.53 "		3 GHz	Female	BNC to Fakra	BNC Plug Right Angle	Free Hanging (In-Line)
Amphenol Custom Cable Q-0D05C0005072i	Male	50 Ohms	Shielded	Free Hanging (In-Line)	RG-316	Copper	Fakra Jack Right Angle	1.8 m	72 in	6 ft	3 GHz	Female	BNC to Fakra	BNC Plug Right Angle	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 74.63
		25	$ 73.17
		50	$ 71.70
		100	$ 70.24
		250	$ 68.78

Description

General part information

Q-0D05C0 Series

Cable Assembly Coaxial BNC to Fakra RG-174 108.0" (2.7m) 9.0'

Documents

Technical documentation and resources

No documents available
