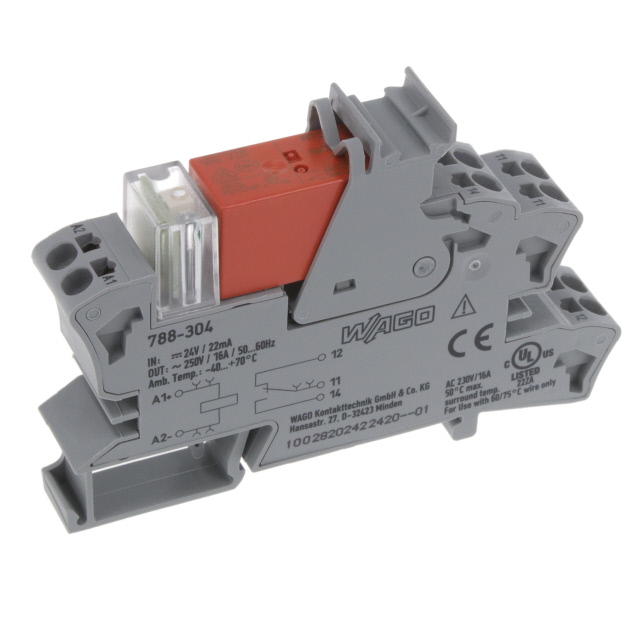

788-304

Active

WAGO Corporation

POWER RELAY, SPDT, 24 VDC, 16 A, 788 SERIES, DIN RAIL, DC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

788-304

Active

WAGO Corporation

POWER RELAY, SPDT, 24 VDC, 16 A, 788 SERIES, DIN RAIL, DC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	788-304	788 Series

Coil Current	19 mA	19 - 36 mA
Coil Resistance	1.3 kOhms	1.3 - 774.2 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	24 VDC	12 - 115 VDC
Contact Form	SPDT (1 Form C)	DPDT (2 Form C), SPDT (1 Form C)
Contact Material	Silver Nickel (AgNi)	Silver Nickel (AgNi)
Contact Rating (Current)	16 A	6 - 16 A
Features	Lighted Indicator	Lighted Indicator
For Use With/Related Products	-	Terminal Blocks
Load - Max Switching	4000 VA	1500 - 4000 VA
Mounting Type	DIN Rail	DIN Rail
Must Operate Voltage	21.6 VDC	20.4 - 103.5 VDC
Number of Positions	-	2 - 8
Operate Time	8 ms	8 - 10 ms
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Relay Type	General Purpose	General Purpose
Release Time	6 ms	4 - 35 ms
Style	-	Flat Pins
Switching Voltage	250 VAC	250 VAC
Termination Style	Spring Terminal	Spring Terminal
Type	-	Terminal Block, Cross Connection

788 Series

JUMPER (BUSBAR), INSULATED JUMPERS, WAGO TOPJOB-S TERMINAL BLOCK SERIES, 8 POSITIONS

Part	Style	Number of Positions	For Use With/Related Products	Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Operate Time	Coil Resistance	Termination Style	Coil Voltage	Relay Type	Load - Max Switching	Must Operate Voltage	Features	Contact Form	Release Time	Coil Current	Contact Rating (Current)	Contact Material	Coil Type	Switching Voltage
WAGO Corporation 788-117	Flat Pins	8	Terminal Blocks	Terminal Block, Cross Connection
WAGO Corporation 788-312					-40 °C	70 °C	DIN Rail	8 ms	1.3 kOhms	Spring Terminal	24 VDC	General Purpose	2000 VA	21.6 VDC	Lighted Indicator	DPDT (2 Form C)	13 ms	19 mA	8 A	Silver Nickel (AgNi)	Non Latching	250 VAC
WAGO Corporation 788-303					-40 °C	70 °C	DIN Rail	8 ms	333.3 Ohms	Spring Terminal	12 VDC	General Purpose	4000 VA		Lighted Indicator	SPDT (1 Form C)	6 ms	36 mA	16 A	Silver Nickel (AgNi)	Non Latching	250 VAC
WAGO Corporation 788-304					-40 °C	70 °C	DIN Rail	8 ms	1.3 kOhms	Spring Terminal	24 VDC	General Purpose	4000 VA	21.6 VDC	Lighted Indicator	SPDT (1 Form C)	6 ms	19 mA	16 A	Silver Nickel (AgNi)	Non Latching	250 VAC
WAGO Corporation 788-515					-40 °C	70 °C	DIN Rail	10 ms	14.4 kOhms	Spring Terminal	115 VAC	General Purpose	2000 VA	103.5 VAC	Lighted Indicator	DPDT (2 Form C)	35 ms		8 A	Silver Nickel (AgNi)	Non Latching	250 VAC
WAGO Corporation 788-384					-40 °C	70 °C	DIN Rail	10 ms	774.2 Ohms	Spring Terminal	24 VDC	General Purpose	1500 VA	20.4 VDC	Lighted Indicator	DPDT (2 Form C)	4 ms	31 mA	6 A	Silver Nickel (AgNi)	Non Latching	250 VAC
WAGO Corporation 788-311					-40 °C	70 °C	DIN Rail	8 ms	333.3 Ohms	Spring Terminal	12 VDC	General Purpose	2000 VA		Lighted Indicator	DPDT (2 Form C)	13 ms	36 mA	8 A	Silver Nickel (AgNi)	Non Latching	250 VAC
WAGO Corporation 788-113	Flat Pins	2	Terminal Blocks	Terminal Block, Cross Connection
WAGO Corporation 788-507					-40 °C	70 °C	DIN Rail	10 ms	14.4 kOhms	Spring Terminal	115 VAC	General Purpose	4000 VA	103.5 VAC	Lighted Indicator	SPDT (1 Form C)	35 ms		16 A	Silver Nickel (AgNi)	Non Latching	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 24.31
		10	$ 23.09
		25	$ 21.88
		50	$ 20.66
		100	$ 19.45
		250	$ 18.23
		500	$ 17.01
Newark	Each	1	$ 28.89
		25	$ 27.40
		100	$ 25.79
		250	$ 24.30
		500	$ 22.57

Description

General part information

788 Series

788-304 is a relay module. It provides reinforced insulation between coil and contacts, to protect the relay coils and contacts and inductive loads must be dampened with an effective protection circuit.
