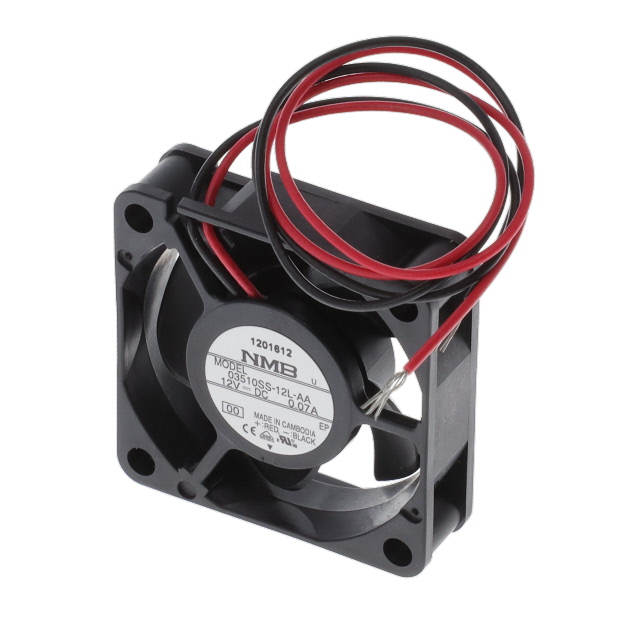

03510SS-12L-AA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, SLEEVE, 3.5CFM, 0.06A, 12V ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

03510SS-12L-AA-00

Active

NMB TECHNOLOGIES

DC AXIAL FAN, SLEEVE, 3.5CFM, 0.06A, 12V ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 7.15
		10	$ 6.37
		25	$ 6.09
		50	$ 5.88
		100	$ 5.68
		250	$ 5.43
		500	$ 5.24
Newark	Each	1	$ 9.31
		5	$ 9.15
		10	$ 9.00
		25	$ 8.74
		50	$ 8.22
		100	$ 7.38

Description

General part information

03510SS Series

Fan Tubeaxial 12VDC Square - 35mm L x 35mm H Sleeve 2 Wire Leads

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Specification	03510SS-12L-AA-00	03510SS Series

Air Flow	-	0.118 - 0.16 m³/min
Air Flow	-	4.2 - 5.7 CFM
Bearing Type	Sleeve	Sleeve
Current Rating (Amps)	-	0.2 - 120 A
Fan Type	Tubeaxial	Tubeaxial
Features	Auto Restart	Speed Sensor (Tach), Locked Rotor Sensor, Auto Restart
Lifetime @ Temp.	-	30000 Hrs
Material - Blade	Plastic	Plastic
Material - Frame	Plastic	Plastic
Noise	-	22.4 - 27 dB(A)
Operating Temperature	-	70 °C
Operating Temperature	-	70 °C
Operating Temperature	-	-10 °C
Operating Temperature	-	-10 °C
Power (Watts)	-	600 - 840 mW
RPM	-	8000 - 10000 RPM
Size / Dimension [x]	35 mm	35 mm
Size / Dimension [z]	35 mm	35 mm
Static Pressure	-	0.23 in H2O
Static Pressure	-	57.3 Pa
Termination	2 Wire Leads	3 Wire Leads, 2 Wire Leads
Voltage - Rated	12 VDC	5 - 12 V
Voltage Range	-	4.5 V
Voltage Range	-	5.5 V
Weight	-	10.43 g
Weight	-	0.023 lb
Width [y]	10 mm	10 mm

Part

Weight

Static Pressure

Fan Type

Noise

Termination

Size / Dimension [z]

Size / Dimension [x]

Material - Frame

Voltage - Rated

Current Rating (Amps)

Voltage Range [Min]

Voltage Range [Max]

Bearing Type

Features

RPM

Width [y]

Material - Blade

Air Flow

Operating Temperature [Max]

Operating Temperature [Min]

Lifetime @ Temp.

Power (Watts)

NMB TECHNOLOGIES

03510SS-05N-AT-00

10.43 g

0.023 lb

0.23 in H2O

57.3 Pa

Tubeaxial

27 dB(A)

3 Wire Leads

35 mm

Plastic

5 V

0.2 A

4.5 V

5.5 V

Sleeve

Speed Sensor (Tach)

10000 RPM

10 mm

Plastic

0.157 m³/min

5.6 CFM

70 °C

-10 °C

NMB TECHNOLOGIES

03510SS-05N-AL-00

0.23 in H2O

57.3 Pa

Tubeaxial

27 dB(A)

3 Wire Leads

35 mm

Plastic

5 V

0.2 A

4.5 V

5.5 V

Sleeve

Auto Restart, Locked Rotor Sensor

10000 RPM

10 mm

Plastic

0.16 m³/min

5.7 CFM

70 °C

-10 °C

30000 Hrs

NMB TECHNOLOGIES

03510SS-12L-AT-00

Tubeaxial

3 Wire Leads

35 mm

Plastic

12 VDC

Sleeve

Auto Restart, Speed Sensor (Tach)

10 mm

Plastic

70 °C

-10 °C

30000 Hrs

NMB TECHNOLOGIES

03510SS-05N-AA-00

0.23 in H2O

57.3 Pa

Tubeaxial

27 dB(A)

2 Wire Leads

35 mm

Plastic

5 V

0.2 A

4.5 V

5.5 V

Sleeve

Auto Restart

10000 RPM

10 mm

Plastic

0.16 m³/min

5.7 CFM

70 °C

-10 °C

30000 Hrs

NMB TECHNOLOGIES

03510SS-05M-AA-00

Tubeaxial

22.4 dB

2 Wire Leads

35 mm

Plastic

5 V

120 mA

4.5 V

5.5 V

Sleeve

Auto Restart

8000 RPM

10 mm

Plastic

0.118 m³/min

4.2 CFM

70 °C

-10 °C

30000 Hrs

600 mW

NMB TECHNOLOGIES

03510SS-12N-AA-00

0.23 in H2O

57.3 Pa

Tubeaxial

27 dB(A)

2 Wire Leads

35 mm

Plastic

12 VDC

70 mA

Sleeve

Auto Restart

10000 RPM

10 mm

Plastic

0.16 m³/min

5.7 CFM

70 °C

-10 °C

30000 Hrs

840 mW

NMB TECHNOLOGIES

03510SS-12M-AA-00

Tubeaxial

22.4 dB

2 Wire Leads

35 mm

Plastic

12 VDC

50 mA

Sleeve

Auto Restart

8000 RPM

10 mm

Plastic

0.118 m³/min

4.2 CFM

70 °C

-10 °C

30000 Hrs

600 mW

NMB TECHNOLOGIES

03510SS-12N-AT-00

10.43 g

0.023 lb

0.23 in H2O

57.3 Pa

Tubeaxial

27 dB(A)

3 Wire Leads

35 mm

Plastic

12 VDC

70 mA

Sleeve

Speed Sensor (Tach)

10000 RPM

10 mm

Plastic

0.157 m³/min

5.6 CFM

70 °C

-10 °C

840 mW

NMB TECHNOLOGIES

03510SS-12M-AL-00

Tubeaxial

3 Wire Leads

35 mm

Plastic

12 VDC

Sleeve

Auto Restart, Locked Rotor Sensor

10 mm

Plastic

70 °C

-10 °C

30000 Hrs

NMB TECHNOLOGIES

03510SS-05L-AA-00

Tubeaxial

2 Wire Leads

35 mm

Plastic

5 V

Sleeve

Auto Restart

10 mm

Plastic

Part	Weight	Weight	Static Pressure	Static Pressure	Fan Type	Noise	Termination	Size / Dimension [z]	Size / Dimension [x]	Material - Frame	Voltage - Rated	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Features	RPM	Width [y]	Material - Blade	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Power (Watts)
NMB TECHNOLOGIES 03510SS-05N-AT-00	10.43 g	0.023 lb	0.23 in H2O	57.3 Pa	Tubeaxial	27 dB(A)	3 Wire Leads	35 mm	35 mm	Plastic	5 V	0.2 A	4.5 V	5.5 V	Sleeve	Speed Sensor (Tach)	10000 RPM	10 mm	Plastic	0.157 m³/min	5.6 CFM	70 °C	70 °C	-10 °C	-10 °C
NMB TECHNOLOGIES 03510SS-05N-AL-00			0.23 in H2O	57.3 Pa	Tubeaxial	27 dB(A)	3 Wire Leads	35 mm	35 mm	Plastic	5 V	0.2 A	4.5 V	5.5 V	Sleeve	Auto Restart, Locked Rotor Sensor	10000 RPM	10 mm	Plastic	0.16 m³/min	5.7 CFM	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs
NMB TECHNOLOGIES 03510SS-12L-AT-00					Tubeaxial		3 Wire Leads	35 mm	35 mm	Plastic	12 VDC				Sleeve	Auto Restart, Speed Sensor (Tach)		10 mm	Plastic			70 °C	70 °C	-10 °C	-10 °C	30000 Hrs
NMB TECHNOLOGIES 03510SS-05N-AA-00			0.23 in H2O	57.3 Pa	Tubeaxial	27 dB(A)	2 Wire Leads	35 mm	35 mm	Plastic	5 V	0.2 A	4.5 V	5.5 V	Sleeve	Auto Restart	10000 RPM	10 mm	Plastic	0.16 m³/min	5.7 CFM	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs
NMB TECHNOLOGIES 03510SS-05M-AA-00					Tubeaxial	22.4 dB	2 Wire Leads	35 mm	35 mm	Plastic	5 V	120 mA	4.5 V	5.5 V	Sleeve	Auto Restart	8000 RPM	10 mm	Plastic	0.118 m³/min	4.2 CFM	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs	600 mW
NMB TECHNOLOGIES 03510SS-12N-AA-00			0.23 in H2O	57.3 Pa	Tubeaxial	27 dB(A)	2 Wire Leads	35 mm	35 mm	Plastic	12 VDC	70 mA			Sleeve	Auto Restart	10000 RPM	10 mm	Plastic	0.16 m³/min	5.7 CFM	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs	840 mW
NMB TECHNOLOGIES 03510SS-12M-AA-00					Tubeaxial	22.4 dB	2 Wire Leads	35 mm	35 mm	Plastic	12 VDC	50 mA			Sleeve	Auto Restart	8000 RPM	10 mm	Plastic	0.118 m³/min	4.2 CFM	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs	600 mW
NMB TECHNOLOGIES 03510SS-12N-AT-00	10.43 g	0.023 lb	0.23 in H2O	57.3 Pa	Tubeaxial	27 dB(A)	3 Wire Leads	35 mm	35 mm	Plastic	12 VDC	70 mA			Sleeve	Speed Sensor (Tach)	10000 RPM	10 mm	Plastic	0.157 m³/min	5.6 CFM	70 °C	70 °C	-10 °C	-10 °C		840 mW
NMB TECHNOLOGIES 03510SS-12M-AL-00					Tubeaxial		3 Wire Leads	35 mm	35 mm	Plastic	12 VDC				Sleeve	Auto Restart, Locked Rotor Sensor		10 mm	Plastic			70 °C	70 °C	-10 °C	-10 °C	30000 Hrs
NMB TECHNOLOGIES 03510SS-05L-AA-00					Tubeaxial		2 Wire Leads	35 mm	35 mm	Plastic	5 V				Sleeve	Auto Restart		10 mm	Plastic
