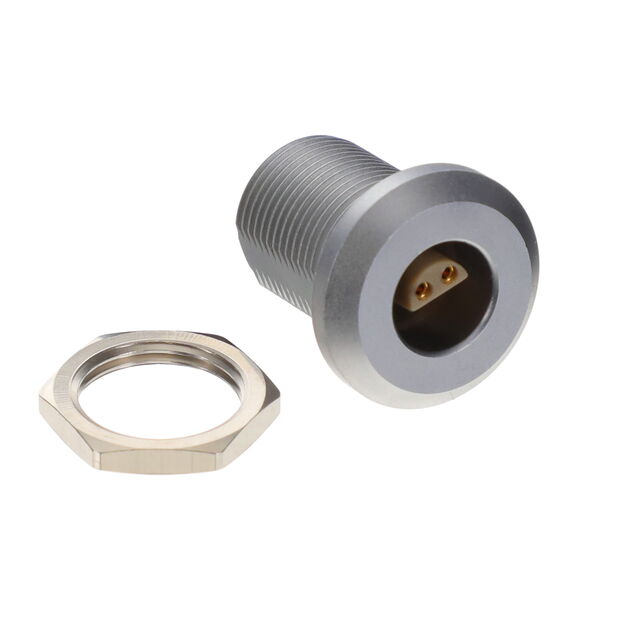

HGP.1S.304.CLLPV
ActiveLEMO
CONN CIRC RCPT 4P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HGP.1S.304.CLLPV
ActiveLEMO
CONN CIRC RCPT 4P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HGP.1S.304.CLLPV | HGP.1S Series |
|---|---|---|
| Applications | Military, Aviation | Military, Aviation |
| Body Finish | - | Chrome |
| Body Material | - | Brass |
| Cable Group | - | 174A, 188A, 196A, 316B, 178B, RG-122, 174, 400, 223, 187A, 179B, RG-58C, 302, 59B |
| Center Contact Material | - | Beryllium Copper |
| Center Contact Plating | - | Gold |
| Color | Silver | Silver |
| Connector Style | - | Coaxial |
| Connector Type | Female Sockets, Male Pins, Receptacle | Receptacle, Female Socket, Receptacle, Female Sockets, Female Sockets, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Bronze, Brass | Bronze, Brass |
| Contact Termination | - | Solder Cup |
| Current Rating (Amps) | 10 A | 4 - 15 A |
| Dielectric Material | - | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Vacuumtight, Potted | Vacuumtight, Potted |
| Housing Color | - | Silver |
| Impedance | - | 50 - 75 Ohms |
| Includes | - | 1 Nut, 1 Connector |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polytetrafluoroethylene (PTFE), Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mating Cycles | - | 1000 |
| Mounting Feature | Bulkhead - Rear Side Nut | Bulkhead - Rear Side Nut |
| Number of Positions | 4 | 1 - 6 |
| Operating Temperature [Max] | 100 °C | 100 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Orientation | Keyed | Keyed |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 304 | 302 - 405 |
| Shield Termination | - | Solder |
| Shielding | Shielded | Shielded |
HGP.1S Series
CONN PNL MNT RCPT COAX SKT SLDER
| Part | Includes | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Ingress Protection | Center Contact Plating | Fastening Type | Housing Color | Mating Cycles | Cable Group | Dielectric Material | Connector Style | Features | Body Material | Connector Type | Shield Termination | Center Contact Material | Body Finish | Contact Termination | Impedance | Applications | Shell Finish | Orientation | Primary Material | Contact Material | Shell Size - Insert | Number of Positions | Current Rating (Amps) | Contact Finish - Mating | Shielding | Color | Insert Material | Shell Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO HGP.1S.250.CTLPV | 1 Connector, 1 Nut | 100 °C | -20 C | Bulkhead - Rear Side Nut | IP68 - Dust Tight, Waterproof | Gold | Push-Pull | Silver | 1000 | 174, 174A, 178B, 188A, 196A, 316B, RG-122 | Polytetrafluoroethylene (PTFE) | Coaxial | Vacuumtight | Brass | Female Socket, Receptacle | Solder | Beryllium Copper | Chrome | Solder Cup | 50 Ohms | ||||||||||||||
LEMO HGP.1S.405.CTLPV | 100 °C | -20 C | Bulkhead - Rear Side Nut | IP68 - Dust Tight, Waterproof | Push-Pull | Potted, Vacuumtight | Receptacle, Female Sockets | Aviation, Military | Chrome | Keyed | Metal | Bronze | 405 | 1 | 4 A | Gold | Shielded | Silver | Polytetrafluoroethylene (PTFE) | Brass | ||||||||||||||
LEMO HGP.1S.304.CLLPV | 100 °C | -20 C | Bulkhead - Rear Side Nut | IP68 - Dust Tight, Waterproof | Push-Pull | Potted, Vacuumtight | Female Sockets, Male Pins, Receptacle | Aviation, Military | Chrome | Keyed | Metal | Brass, Bronze | 304 | 4 | 10 A | Gold | Shielded | Silver | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | |||||||||||||
LEMO HGP.1S.250.CTLP | 1 Connector, 1 Nut | 100 °C | -20 C | Bulkhead - Rear Side Nut | IP68 - Dust Tight, Waterproof | Gold | Push-Pull | Silver | 1000 | 174, 174A, 178B, 188A, 196A, 316B, RG-122 | Polytetrafluoroethylene (PTFE) | Coaxial | Brass | Female Socket, Receptacle | Solder | Beryllium Copper | Chrome | Solder Cup | 50 Ohms | |||||||||||||||
LEMO HGP.1S.275.CTLP | 1 Connector, 1 Nut | 100 °C | -20 C | Bulkhead - Rear Side Nut | IP68 - Dust Tight, Waterproof | Gold | Push-Pull | Silver | 1000 | 179B, 187A, 223, 302, 400, 59B, RG-58C | Polytetrafluoroethylene (PTFE) | Coaxial | Brass | Female Socket, Receptacle | Solder | Beryllium Copper | Chrome | Solder Cup | 75 Ohms | |||||||||||||||
LEMO HGP.1S.405.CTAPV | 100 °C | -20 C | Bulkhead - Rear Side Nut | IP68 - Dust Tight, Waterproof | Push-Pull | Potted, Vacuumtight | Male Pins, Receptacle | Aviation, Military | Chrome | Keyed | Metal | Brass | 405 | 1 | 8 A | Gold | Shielded | Silver | Polytetrafluoroethylene (PTFE) | Brass | ||||||||||||||
LEMO HGP.1S.306.CLLPV | 100 °C | -20 C | Bulkhead - Rear Side Nut | IP68 - Dust Tight, Waterproof | Push-Pull | Potted, Vacuumtight | Female Sockets, Male Pins, Receptacle | Aviation, Military | Chrome | Keyed | Metal | Brass, Bronze | 306 | 6 | 7 A | Gold | Shielded | Silver | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | |||||||||||||
LEMO HGP.1S.405.CLAP | 100 °C | -20 C | Bulkhead - Rear Side Nut | IP68 - Dust Tight, Waterproof | Push-Pull | Potted | Male Pins, Receptacle | Aviation, Military | Chrome | Keyed | Metal | Brass | 405 | 1 | 8 A | Gold | Shielded | Silver | Polyetheretherketone (PEEK) | Brass | UL94 V-0 | |||||||||||||
LEMO HGP.1S.302.CLLPV | 100 °C | -20 C | Bulkhead - Rear Side Nut | IP68 - Dust Tight, Waterproof | Push-Pull | Potted, Vacuumtight | Female Sockets, Male Pins, Receptacle | Aviation, Military | Chrome | Keyed | Metal | Brass, Bronze | 302 | 2 | 15 A | Gold | Shielded | Silver | Polyetheretherketone (PEEK) | Brass | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 67.00 | |
| 10 | $ 61.48 | |||
| 25 | $ 59.12 | |||
| 50 | $ 57.14 | |||
| 100 | $ 53.99 | |||
Description
General part information
HGP.1S Series
4 Position Circular Connector Receptacle, Female Sockets and Male Pins Solder Cup
