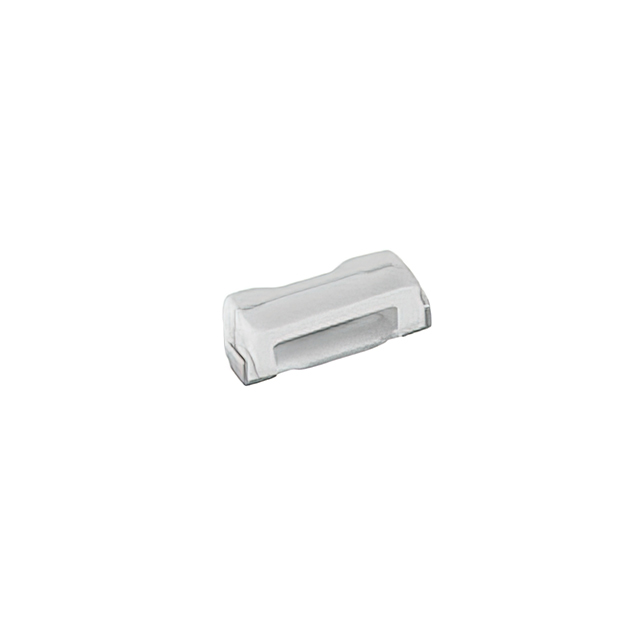

EAPL2812GA0
ActiveEverlight Electronics Co Ltd
LED GREEN CLEAR 2SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EAPL2812GA0
ActiveEverlight Electronics Co Ltd
LED GREEN CLEAR 2SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EAPL2812GA0 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 0.9 mm |
| Lens Color | Colorless |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 1685 mcd |
| Mounting Type | Surface Mount, Right Angle |
| Package / Case | 2-SMD, J-Lead |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
| Wavelength - Dominant | 528 nm |
| Wavelength - Peak | 518 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 6000 | $ 0.16 | |
| 10000 | $ 0.16 | |||
| 50000 | $ 0.15 | |||
Description
General part information
EAPL2812 Series
Green 528nm LED Indication - Discrete 3.2V 2-SMD, J-Lead
