Specification	MADLT01NF

Control / Drive Type	Servo AC
Current - Output	6 A
For Use With/Related Products	MINAS A6 Series
Interface	RTEX
Motor Type	Servo
Mounting Type	Chassis Mount
Number of Motors	1
Operating Temperature (Max)	55 °C
Operating Temperature (Min)	0 °C
Type	Module
Voltage - Load	100 V
Voltage - Supply	100 VAC
Wattage - Load	50 W

MADLT Series

Part	Operating Temperature (Max)	Type	Interface	For Use With/Related Products	Mounting Type	Voltage - Supply	Voltage - Load	Wattage - Load	Current - Output	Number of Motors	Motor Type	Control / Drive Type	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)
Panasonic Industrial Automation Sales MADLT01NF	55 °C	Module	RTEX	MINAS A6 Series	Chassis Mount	100 VAC	100 V	50 W	6 A	1	Servo	Servo AC
Panasonic Industrial Automation Sales MADLT05BF	55 °C	Module	RS-232 RS-485	MINAS A4 Series	Chassis Mount			100 W	6 A	1	Servo	Servo AC	200 VAC	240 VAC
Panasonic Industrial Automation Sales MADLT01BF	55 °C	Module	RS-232 RS-485	MINAS A4 Series	Chassis Mount			50 W	6 A	1	Servo	Servo AC	100 VAC	120 V
Panasonic Industrial Automation Sales MADLT01SF	55 °C	Module	RS-232 RS-485 USB	MINAS A6 Series	Chassis Mount	100 VAC	100 V	50 W	6 A	1	Servo	Servo AC

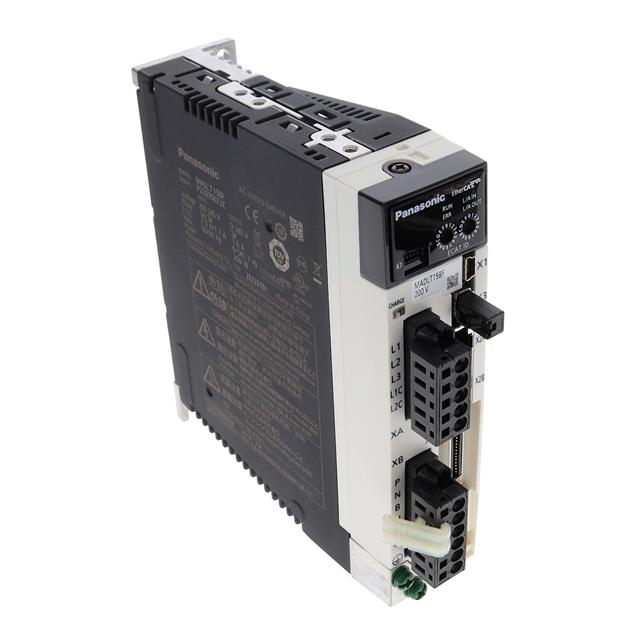

Panasonic Industrial Automation Sales MADLT15BF	55 °C	Module	RS-232 RS-485	MINAS A4 Series	Chassis Mount		100 V	200 W	8 A	1	Servo	Servo AC	200 VAC	240 VAC
Panasonic Industrial Automation Sales MADLT11NF	55 °C	Module	RTEX	MINAS A6 Series	Chassis Mount	100 VAC	100 V	100 W	8 A	1	Servo	Servo AC

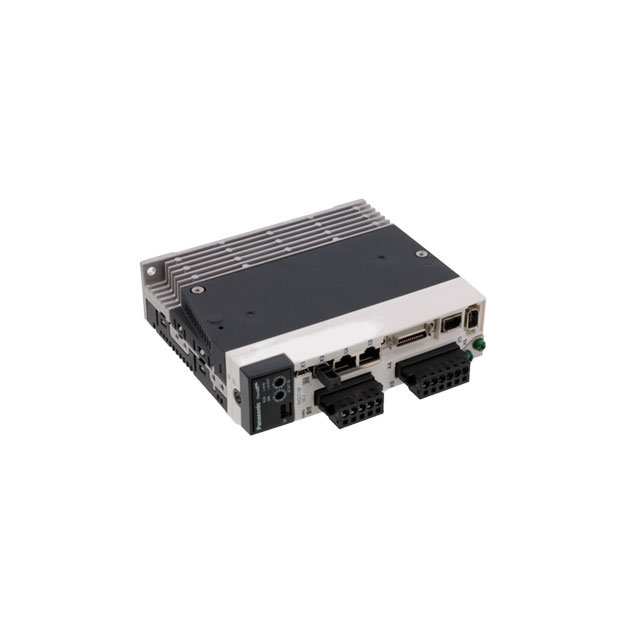

Panasonic Industrial Automation Sales MADLT11BF	55 °C	Module	RS-232 RS-485	MINAS A4 Series	Chassis Mount		100 V	100 W	8 A	1	Servo	Servo AC	100 VAC	120 V
Panasonic Industrial Automation Sales MADLT05SF	55 °C	Module	RS-232 RS-485 USB	MINAS A6 Series	Chassis Mount	200 VAC	200 V	100 W	6 A	1	Servo	Servo AC
Panasonic Industrial Automation Sales MADLT05NF	55 °C	Module	RTEX	MINAS A6 Series	Chassis Mount	200 VAC	200 V	100 W	6 A	1	Servo	Servo AC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

MADLT01NF | Datasheet
